Winchester
Power-Point

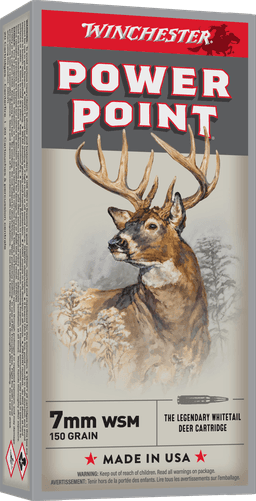

7mm Winchester Short Magnum · 150gr · Power-Point
Muzzle Velocity
3,200
fps
Muzzle Energy
3,410
ft-lbs
Ballistic Coefficient
0.364 G1
G1
Sectional Density
0.266
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,200fps | 3,410ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,924fps | 2,848ft-lbs | 0 | 0 | 0.8 | 0.098 |
| 200 yd | 2,665fps | 2,366ft-lbs | -2.6 | -1.2 | 3.2 | 0.206 |
| 300 yd | 2,421fps | 1,952ft-lbs | -10.1 | -3.2 | 7.5 | 0.324 |
| 400 yd | 2,189fps | 1,596ft-lbs | -23.5 | -5.6 | 13.9 | 0.454 |
| 500 yd | 1,971fps | 1,293ft-lbs | -44.2 | -8.4 | 22.8 | 0.598 |
| 600 yd | 1,766fps | 1,039ft-lbs | -73.9 | -11.8 | 34.6 | 0.759 |
| 700 yd | 1,578fps | 829ft-lbs | -114.8 | -15.7 | 49.8 | 0.939 |
| 800 yd | 1,409fps | 661ft-lbs | -169.7 | -20.3 | 68.7 | 1.14 |
| 900 yd | 1,263fps | 532ft-lbs | -242.2 | -25.7 | 91.8 | 1.366 |
| 1000 yd | 1,146fps | 438ft-lbs | -336.6 | -32.1 | 119.3 | 1.615 |
Bullet Information
ManufacturerWinchester
Bullet150gr Power-Point
Diameter0.284" (7mm)
ConstructionSoft Point
BC (G1)0.364 G1
Sectional Density0.266
Load Information
Cartridge7mm Winchester Short Magnum
ManufacturerWinchester
Product LinePower-Point
CategoryHunting
SKUX7MMWSM
