Muzzle Velocity
2,953
fps
Muzzle Energy
3,485
ft-lbs
Ballistic Coefficient
0.354
G1
Sectional Density
0.271
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,953fps | 3,485ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,685fps | 2,881ft-lbs | 0 | 0 | 0.9 | 0.107 |
| 200 yd | 2,433fps | 2,365ft-lbs | -3.3 | -1.6 | 3.7 | 0.224 |
| 300 yd | 2,194fps | 1,924ft-lbs | -12.6 | -4 | 8.6 | 0.354 |
| 400 yd | 1,969fps | 1,550ft-lbs | -29.1 | -6.9 | 16.1 | 0.498 |
| 500 yd | 1,759fps | 1,237ft-lbs | -54.5 | -10.4 | 26.6 | 0.659 |
| 600 yd | 1,567fps | 981ft-lbs | -91.3 | -14.5 | 40.6 | 0.84 |
| 700 yd | 1,394fps | 777ft-lbs | -142.3 | -19.4 | 58.4 | 1.043 |
| 800 yd | 1,248fps | 622ft-lbs | -211.2 | -25.2 | 80.6 | 1.271 |
| 900 yd | 1,132fps | 512ft-lbs | -302.5 | -32.1 | 107.3 | 1.524 |
| 1000 yd | 1,047fps | 438ft-lbs | -420.9 | -40.2 | 138 | 1.8 |
Bullet Information

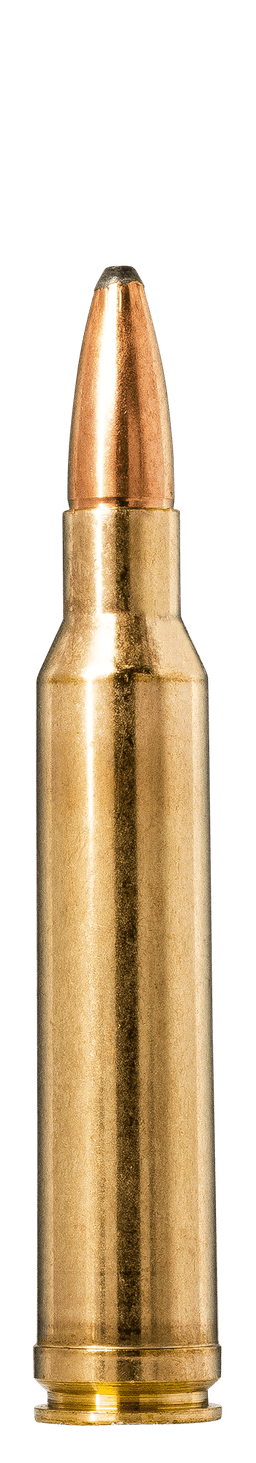

ManufacturerNorma
Bullet180gr Oryx
Diameter0.308" (7.62mm)
ConstructionBonded
BC (G1)0.354 G1
Sectional Density0.271
Load Information
Other Loads Using the Oryx
Norma
1xOryx
.30-06 Sprg · 180gr · Oryx
MV: 2,700fps
BC: 0.354 G1
Energy: 2,913ft-lbs
Type: Hunting
Norma
1xOryx
.308 Winchester · 180gr · Oryx
MV: 2,612fps
BC: 0.354 G1
Energy: 2,726ft-lbs
Type: Hunting
Norma
Oryx Silencer Series
.30-06 Sprg · 180gr · Oryx
MV: 2,690fps
BC: 0.354 G1
Energy: 2,892ft-lbs
Type: Hunting
Similar Loads in Other Cartridges
Norma
6xBondstrike
.30-06 Sprg · 180gr · Bondstrike
MV: 2,756fps
BC: 0.308 G7
Energy: 3,035ft-lbs
Type: Hunting
Remington
5xCore-Lokt
.30-30 Win · 170gr · Core-Lokt Hollow Point
MV: 2,200fps
BC: 0.254 G1
Energy: 1,827ft-lbs
Type: Hunting
Winchester
5xPower-Point
.30-30 Win · 170gr · Power-Point
MV: 2,200fps
BC: 0.241 G1
Energy: 1,827ft-lbs
Type: Hunting
Federal Premium
4xTerminal Ascent
.30-06 Sprg · 175gr · Terminal Ascent
MV: 2,730fps
BC: 0.258 G7
Energy: 2,896ft-lbs
Type: Hunting
Hornady
3xSuperformance
.300 Win Mag · 180gr · SST
MV: 3,130fps
BC: 0.480 G1
Energy: 3,915ft-lbs
Type: Hunting
Hornady
3xSubsonic
.300 AAC BLK · 190gr · Sub-X
MV: 1,050fps
BC: 0.437 G1
Energy: 465ft-lbs
Type: Self_defense
