Muzzle Velocity
2,400
fps
Muzzle Energy
2,430
ft-lbs
Ballistic Coefficient
0.198 G1
G1
Sectional Density
0.170
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,400fps | 2,430ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 1,986fps | 1,664ft-lbs | 0 | 0 | 2.2 | 0.137 |
| 200 yd | 1,620fps | 1,108ft-lbs | -7.4 | -3.6 | 9.6 | 0.305 |
| 300 yd | 1,318fps | 732ft-lbs | -28.3 | -9 | 23.9 | 0.511 |
| 400 yd | 1,104fps | 514ft-lbs | -69.4 | -16.6 | 45.9 | 0.761 |
| 500 yd | 980fps | 405ft-lbs | -138.8 | -26.5 | 74.9 | 1.051 |
| 600 yd | 896fps | 339ft-lbs | -244.5 | -38.9 | 109.4 | 1.371 |
| 700 yd | 831fps | 291ft-lbs | -393.4 | -53.7 | 148.7 | 1.72 |
| 800 yd | 775fps | 254ft-lbs | -592.9 | -70.8 | 192.6 | 2.094 |
| 900 yd | 726fps | 222ft-lbs | -850.4 | -90.2 | 241.2 | 2.495 |
| 1000 yd | 681fps | 195ft-lbs | -1174.4 | -112.1 | 294.6 | 2.924 |
Bullet Information

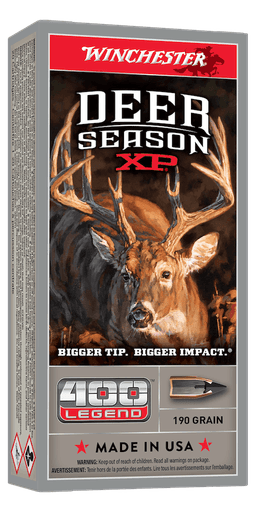

ManufacturerWinchester
Bullet190gr Extreme Point
Diameter0.4"
ConstructionSoft Point
BC (G1)0.198 G1
Sectional Density0.170
Load Information
More .400 Legend Loads
Winchester
2xPower-Point
.400 Legend · 215gr · Jacketed Hollow Point
MV: 2,250fps
BC: 0.206 G1
Energy: 2,416ft-lbs
Type: Hunting
Nosler
Whitetail Country
.400 Legend · 215gr · Straight Wall
MV: Not published
BC: 0.215 G1
Energy: —
Type: Hunting
Barnes
VOR-TX Rifle
.400 Legend · 190gr · TSX
MV: 2,390fps
BC: 0.183 G1
Energy: 2,409ft-lbs
Type: Hunting
Barnes
Harvest
.400 Legend · 200gr · Pro-Hunter
MV: 2,265fps
BC: 0.196 G1
Energy: 2,278ft-lbs
Type: Hunting
Federal Premium
Power-Shok
.400 Legend · 210gr · Soft Point
MV: 2,250fps
BC: 0.207 G1
Energy: 2,360ft-lbs
Type: Hunting
Remington
Core-Lokt
.400 Legend · 210gr · Core-Lokt Soft Point
MV: 2,250fps
BC: 0.207 G1
Energy: 2,360ft-lbs
Type: Hunting
Similar Loads in Other Cartridges
Hornady
Custom
10mm Auto · 180gr · XTP
MV: 1,275fps
BC: 0.164 G1
Energy: 650ft-lbs
Type: Self_defense
Federal Premium
Trophy Bonded Bear Claw Handgun
10mm Auto · 180gr · Bonded
MV: 1,275fps
Energy: 650ft-lbs
Type: Hunting
Winchester
USA Ready
10mm Auto · 180gr · Full Metal Jacket
MV: 1,250fps
Energy: 624ft-lbs
Type: Plinking
Winchester
Defender
10mm Auto · 180gr · Bonded Jacketed
MV: 1,240fps
Energy: 614ft-lbs
Type: Self_defense
Winchester
W Defense
10mm Auto · 180gr · Jacketed Hollow Point
MV: 1,235fps
Energy: 609ft-lbs
Type: Self_defense
Browning
X-Point Defense
10mm Auto · 180gr · Jacketed
MV: 1,225fps
Energy: 600ft-lbs
Type: Self_defense
