Muzzle Velocity
2,625
fps
Muzzle Energy
3,060
ft-lbs
Ballistic Coefficient
0.338 G1
G1
Sectional Density
0.301
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,625fps | 3,060ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,364fps | 2,482ft-lbs | 0 | 0 | 1.1 | 0.12 |
| 200 yd | 2,119fps | 1,994ft-lbs | -4.7 | -2.3 | 4.6 | 0.254 |
| 300 yd | 1,889fps | 1,584ft-lbs | -17.3 | -5.5 | 10.8 | 0.404 |
| 400 yd | 1,676fps | 1,247ft-lbs | -39.6 | -9.4 | 20.4 | 0.573 |
| 500 yd | 1,483fps | 976ft-lbs | -74.3 | -14.2 | 33.8 | 0.764 |
| 600 yd | 1,315fps | 768ft-lbs | -125 | -19.9 | 51.6 | 0.979 |
| 700 yd | 1,178fps | 616ft-lbs | -195.8 | -26.7 | 73.9 | 1.22 |
| 800 yd | 1,077fps | 515ft-lbs | -291.6 | -34.8 | 100.8 | 1.487 |
| 900 yd | 1,004fps | 447ft-lbs | -417.4 | -44.3 | 131.6 | 1.776 |
| 1000 yd | 948fps | 399ft-lbs | -577.8 | -55.2 | 165.8 | 2.085 |
Bullet Information

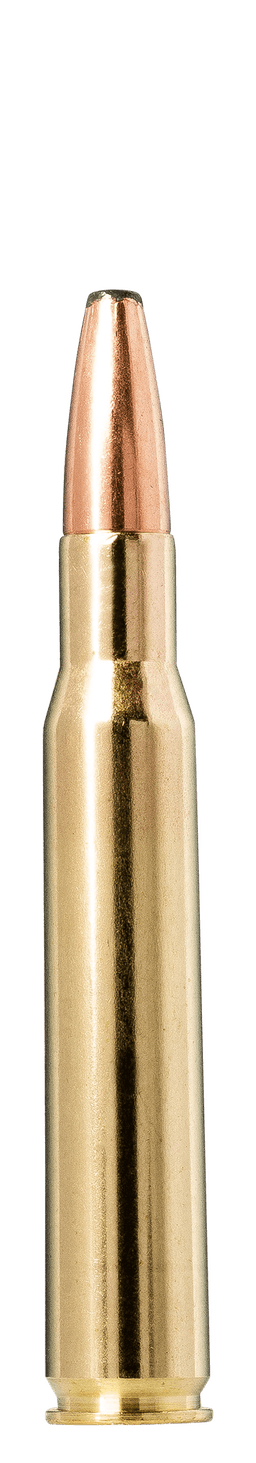

ManufacturerNorma
Bullet200gr Oryx
Diameter0.308" (7.62mm)
ConstructionBonded
BC (G1)0.338 G1
Sectional Density0.301
Load Information
Cartridge.30-06 Springfield
ManufacturerNorma
Product LineOryx
CategoryHunting
Test Barrel24"
SKU20176772
