Muzzle Velocity
2,700
fps
Muzzle Energy
2,266
ft-lbs
Ballistic Coefficient
0.509 G1
G1
Sectional Density
0.287
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,700fps | 2,266ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,522fps | 1,977ft-lbs | 0 | 0 | 0.7 | 0.115 |
| 200 yd | 2,352fps | 1,719ft-lbs | -4 | -1.9 | 2.8 | 0.238 |
| 300 yd | 2,187fps | 1,487ft-lbs | -14.2 | -4.5 | 6.5 | 0.37 |
| 400 yd | 2,030fps | 1,281ft-lbs | -31.8 | -7.6 | 12 | 0.513 |
| 500 yd | 1,879fps | 1,098ft-lbs | -57.8 | -11 | 19.5 | 0.666 |
| 600 yd | 1,736fps | 937ft-lbs | -93.6 | -14.9 | 29.2 | 0.833 |
| 700 yd | 1,602fps | 797ft-lbs | -141.1 | -19.2 | 41.3 | 1.012 |
| 800 yd | 1,477fps | 678ft-lbs | -202.1 | -24.1 | 56.1 | 1.208 |
| 900 yd | 1,363fps | 577ft-lbs | -279 | -29.6 | 73.8 | 1.419 |
| 1000 yd | 1,262fps | 495ft-lbs | -374.8 | -35.8 | 94.5 | 1.648 |

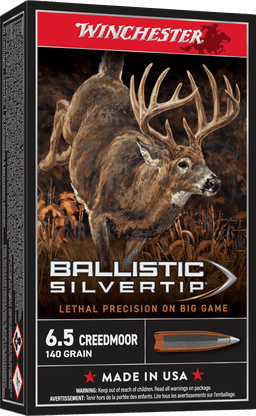

Bullet Information
ManufacturerWinchester
Bullet140gr Rapid Controlled Expansion Polymer Tip
Diameter0.264" (6.5mm)
ConstructionBonded
BC (G1)0.509 G1
Sectional Density0.287
Load Information
Cartridge6.5 Creedmoor
ManufacturerWinchester
Product LineBallistic Silvertip
CategoryHunting
SKUSBST65CM
More 6.5 CM Loads
Hornady
3xMatch
6.5 Creedmoor · 147gr · ELD Match
MV: 2,695fps
BC: 0.351 G7
Energy: 2,370ft-lbs
Type: Match
Federal Premium
2xTerminal Ascent
6.5 Creedmoor · 130gr · Terminal Ascent
MV: 2,800fps
BC: 0.263 G7
Energy: 2,263ft-lbs
Type: Hunting
Nosler
2xBallistic Tip Hunting
6.5 Creedmoor · 140gr · Ballistic Tip Hunting
MV: 2,650fps
BC: 0.509 G1
Energy: 2,183ft-lbs
Type: Hunting
Barnes
1xVOR-TX Reduced Recoil
6.5 Creedmoor · 100gr · TTSX
MV: 2,760fps
BC: 0.351 G1
Energy: 1,691ft-lbs
Type: Hunting
Hornady
Hornady International
6.5 Creedmoor · 120gr · ECX
MV: Not published
BC: 0.360 G1
Energy: —
Type: Hunting
Nosler
Whitetail Country
6.5 Creedmoor · 140gr · Solid Base
MV: Not published
Energy: —
Type: Hunting
Other Loads Using the Rapid Controlled Expansion Polymer Tip
Winchester
Ballistic Silvertip
6.5 PRC · 140gr · Rapid Controlled Expansion Polymer Tip
MV: 3,020fps
BC: 0.509 G1
Energy: 2,835ft-lbs
Type: Hunting
Similar Loads in Other Cartridges
Hornady
5xMatch
6.5 PRC · 147gr · ELD Match
MV: 2,910fps
BC: 0.351 G7
Energy: 2,764ft-lbs
Type: Match
Federal Premium
3xTerminal Ascent
6.5 CM +P · 130gr · Terminal Ascent
MV: 3,100fps
BC: 0.263 G7
Energy: 2,774ft-lbs
Type: Hunting
Nosler
1xTrophy Grade
.264 Win Mag · 130gr · AccuBond
MV: 3,100fps
BC: 0.488 G1
Energy: 2,774ft-lbs
Type: Hunting
Federal Premium
1xTerminal Ascent
6.5 PRC · 130gr · Terminal Ascent
MV: 3,000fps
BC: 0.263 G7
Energy: 2,597ft-lbs
Type: Hunting
Weatherby
Select
6.5-300 Wby Mag · 130gr · Scirocco
MV: 3,425fps
BC: 0.571 G1
Energy: 3,386ft-lbs
Type: Hunting
Nosler
Trophy Grade
.26 Nosler · 140gr · AccuBond
MV: 3,300fps
BC: 0.509 G1
Energy: 3,385ft-lbs
Type: Hunting
