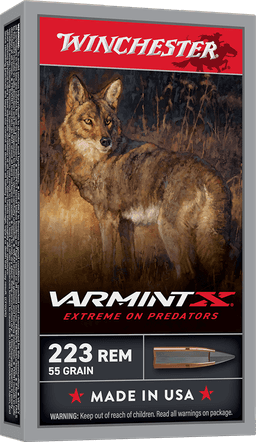

Winchester
Varmint X
.223 Remington · 55gr · Extreme Point
Muzzle Velocity
3,240
fps
Muzzle Energy
1,282
ft-lbs
Ballistic Coefficient
0.246 G1
G1
Sectional Density
0.157
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,240fps | 1,282ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,835fps | 981ft-lbs | 0 | 0 | 1.1 | 0.099 |
| 200 yd | 2,464fps | 741ft-lbs | -2.9 | -1.4 | 4.8 | 0.213 |
| 300 yd | 2,123fps | 550ft-lbs | -11.5 | -3.7 | 11.6 | 0.344 |
| 400 yd | 1,810fps | 400ft-lbs | -27.9 | -6.7 | 22.3 | 0.497 |
| 500 yd | 1,532fps | 287ft-lbs | -55 | -10.5 | 37.7 | 0.677 |
| 600 yd | 1,299fps | 206ft-lbs | -97.1 | -15.5 | 58.9 | 0.89 |
| 700 yd | 1,125fps | 155ft-lbs | -159.9 | -21.8 | 86.5 | 1.139 |
| 800 yd | 1,013fps | 125ft-lbs | -250.1 | -29.9 | 119.8 | 1.422 |
| 900 yd | 936fps | 107ft-lbs | -374.1 | -39.7 | 157.9 | 1.73 |
| 1000 yd | 876fps | 94ft-lbs | -537.9 | -51.4 | 200 | 2.062 |
Bullet Information
ManufacturerWinchester
Bullet55gr Extreme Point
Diameter0.224" (5.56mm)
ConstructionSoft Point
BC (G1)0.246 G1
Sectional Density0.157
Load Information
