Muzzle Velocity
2,953
fps
Muzzle Energy
3,291
ft-lbs
Ballistic Coefficient
0.378 G1
G1
Sectional Density
0.301
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,953fps | 3,291ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,702fps | 2,755ft-lbs | 0 | 0 | 0.8 | 0.106 |
| 200 yd | 2,464fps | 2,292ft-lbs | -3.3 | -1.6 | 3.4 | 0.222 |
| 300 yd | 2,239fps | 1,892ft-lbs | -12.3 | -3.9 | 8 | 0.35 |
| 400 yd | 2,025fps | 1,548ft-lbs | -28.3 | -6.8 | 14.9 | 0.491 |
| 500 yd | 1,824fps | 1,256ft-lbs | -52.8 | -10.1 | 24.5 | 0.647 |
| 600 yd | 1,638fps | 1,012ft-lbs | -87.7 | -14 | 37.2 | 0.821 |
| 700 yd | 1,468fps | 814ft-lbs | -135.7 | -18.5 | 53.4 | 1.014 |
| 800 yd | 1,319fps | 656ft-lbs | -199.9 | -23.9 | 73.5 | 1.23 |
| 900 yd | 1,194fps | 538ft-lbs | -284.1 | -30.1 | 97.7 | 1.47 |
| 1000 yd | 1,098fps | 455ft-lbs | -392.7 | -37.5 | 126.1 | 1.732 |

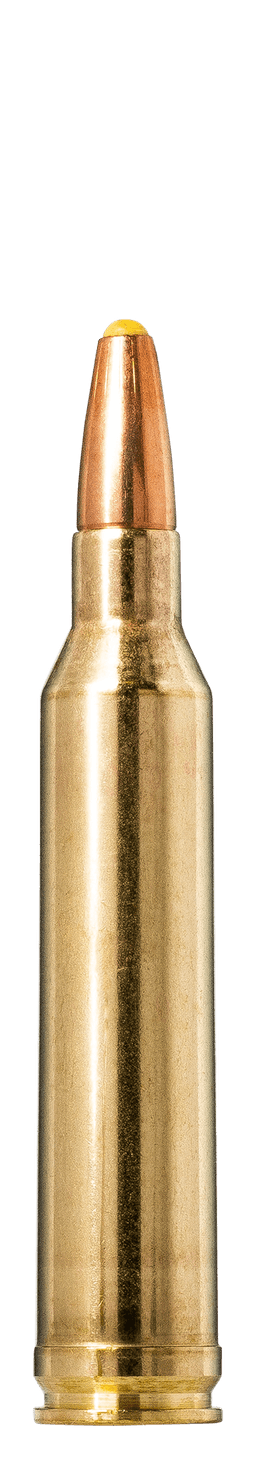

Bullet Information
ManufacturerNorma
Bullet170gr Plastic Point
Diameter0.284" (7mm)
ConstructionSoft Point
BC (G1)0.378 G1
Sectional Density0.301
Load Information
Cartridge7mm Remington Magnum
ManufacturerNorma
Product LinePlastic Point
CategoryHunting
Test Barrel26"
SKU20170272
