Muzzle Velocity
1,990
fps
Muzzle Energy
967
ft-lbs
Ballistic Coefficient
0.180 G1
G1
Sectional Density
0.166
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 1,990fps | 967ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 1,590fps | 617ft-lbs | 0 | 0 | 3.2 | 0.169 |
| 200 yd | 1,269fps | 393ft-lbs | -12.5 | -6 | 13.9 | 0.381 |
| 300 yd | 1,061fps | 275ft-lbs | -46.7 | -14.9 | 33.3 | 0.641 |
| 400 yd | 944fps | 218ft-lbs | -111.6 | -26.7 | 59.7 | 0.942 |
| 500 yd | 863fps | 182ft-lbs | -215.6 | -41.2 | 91.8 | 1.275 |
| 600 yd | 797fps | 155ft-lbs | -366.3 | -58.3 | 129.1 | 1.638 |
| 700 yd | 740fps | 134ft-lbs | -572 | -78 | 171.4 | 2.029 |
| 800 yd | 689fps | 116ft-lbs | -841.4 | -100.4 | 219.1 | 2.451 |
| 900 yd | 643fps | 101ft-lbs | -1184.6 | -125.7 | 272.2 | 2.903 |
| 1000 yd | 601fps | 88ft-lbs | -1612.9 | -154 | 331.2 | 3.389 |
Bullet Information

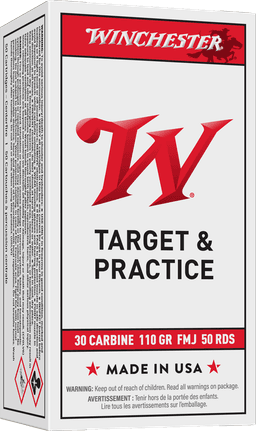

ManufacturerWinchester
Bullet110gr Full Metal Jacket
Diameter0.308" (7.62mm)
ConstructionFMJ
BC (G1)0.180 G1
Sectional Density0.166
Load Information
More .30 Carbine Loads
Hornady
Critical Defense
.30 Carbine · 110gr · FTX
MV: 2,000fps
BC: 0.178 G1
Energy: 977ft-lbs
Type: Self_defense
Remington
Core-Lokt
.30 Carbine · 110gr · Core-Lokt Soft Point
MV: 1,990fps
BC: 0.166 G1
Energy: 967ft-lbs
Type: Hunting
Winchester
Super-X
.30 Carbine · 110gr · Hollow
MV: 1,990fps
BC: 0.166 G1
Energy: 967ft-lbs
Type: Hunting
Remington
UMC Centerfire
.30 Carbine · 110gr · Full Metal Jacket
MV: 1,990fps
BC: 0.166 G1
Energy: 967ft-lbs
Type: Match
Federal Premium
American Eagle
.30 Carbine · 110gr · Full Metal Jacket
MV: 1,990fps
BC: 0.165 G1
Energy: 967ft-lbs
Type: Match
Federal Premium
Power-Shok
.30 Carbine · 110gr · Jacketed
MV: 1,990fps
BC: 0.165 G1
Energy: 967ft-lbs
Type: Hunting
