Muzzle Velocity
3,350
fps
Muzzle Energy
1,993
ft-lbs
Ballistic Coefficient
0.255 G1
G1
Sectional Density
0.194
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,350fps | 1,993ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,948fps | 1,544ft-lbs | 0 | 0 | 1 | 0.095 |
| 200 yd | 2,581fps | 1,183ft-lbs | -2.5 | -1.2 | 4.4 | 0.204 |
| 300 yd | 2,243fps | 893ft-lbs | -10.3 | -3.3 | 10.6 | 0.329 |
| 400 yd | 1,930fps | 662ft-lbs | -25 | -6 | 20.2 | 0.473 |
| 500 yd | 1,647fps | 482ft-lbs | -49.2 | -9.4 | 34.1 | 0.641 |
| 600 yd | 1,401fps | 349ft-lbs | -86.3 | -13.7 | 53.1 | 0.839 |
| 700 yd | 1,204fps | 257ft-lbs | -141.2 | -19.3 | 78.1 | 1.071 |
| 800 yd | 1,067fps | 202ft-lbs | -220.1 | -26.3 | 109.2 | 1.337 |
| 900 yd | 977fps | 170ft-lbs | -329.5 | -35 | 145.3 | 1.631 |
| 1000 yd | 911fps | 147ft-lbs | -475.4 | -45.4 | 185.6 | 1.95 |

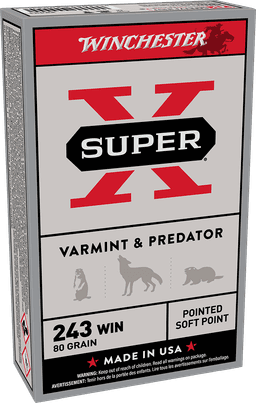

Bullet Information
ManufacturerWinchester
Bullet80gr Pointed Soft Point
Diameter0.243" (6mm)
ConstructionSoft Point
BC (G1)0.255 G1
Sectional Density0.194
Load Information
More .243 Win Loads
Hornady
3xSuperformance Varmint
.243 Winchester · 75gr · V-MAX
MV: 3,580fps
BC: 0.330 G1
Energy: 2,134ft-lbs
Type: Varmint
Federal Premium
2xBerger Hybrid Hunter
.243 Winchester · 95gr · Hybrid Hunter
MV: 3,050fps
BC: 0.223 G7
Energy: 1,962ft-lbs
Type: Hunting
Nosler
1xVarmageddon
.243 Winchester · 70gr · Varmageddon
MV: 3,500fps
BC: 0.305 G1
Energy: 1,904ft-lbs
Type: Varmint
Remington
1xCore-Lokt
.243 Winchester · 100gr · Core-Lokt Soft Point
MV: 2,960fps
BC: 0.272 G1
Energy: 1,945ft-lbs
Type: Hunting
Nosler
Whitetail Country
.243 Winchester · 100gr · Solid Base
MV: Not published
BC: 0.388 G1
Energy: —
Type: Hunting
Hornady
Superformance Varmint
.243 Winchester · 58gr · V-MAX
MV: 3,925fps
BC: 0.250 G1
Energy: 1,984ft-lbs
Type: Varmint
Similar Loads in Other Cartridges
Weatherby
Select
.240 Wby Mag · 72gr · Hammer Hunter
MV: 3,700fps
BC: 0.320 G1
Energy: 2,188ft-lbs
Type: Hunting
Nosler
Varmageddon
6mm Creedmoor · 70gr · Varmageddon
MV: 3,550fps
BC: 0.305 G1
Energy: 1,958ft-lbs
Type: Varmint
Hornady
Superformance Varmint
.243 WSSM · 75gr · V-MAX
MV: 3,540fps
BC: 0.330 G1
Energy: 2,087ft-lbs
Type: Varmint
Weatherby
Select
.240 Wby Mag · 80gr · TTSX
MV: 3,440fps
BC: 0.333 G1
Energy: 2,102ft-lbs
Type: Hunting
Hornady
Superformance
6mm Creedmoor · 90gr · CX
MV: 3,325fps
BC: 0.418 G1
Energy: 2,209ft-lbs
Type: Hunting
Hornady
V-Match
6mm Creedmoor · 80gr · ELD-VT
MV: 3,300fps
BC: 0.206 G7
Energy: 1,934ft-lbs
Type: Match
