Norma
African Ph

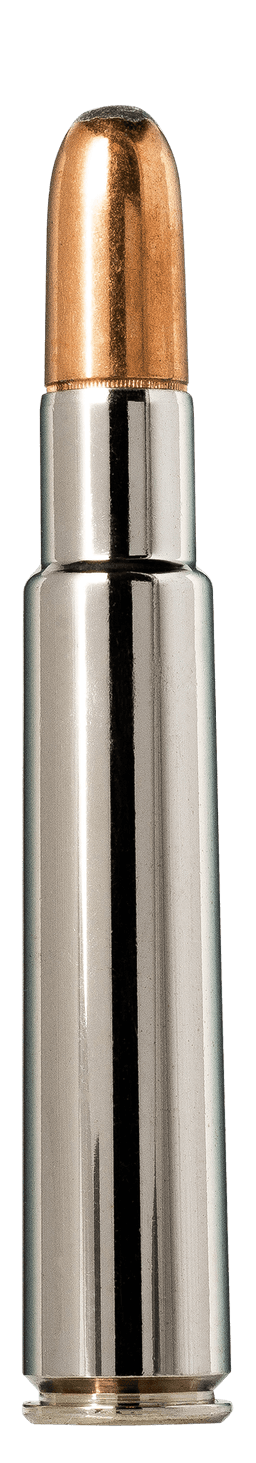

.416 Rigby · 450gr · African PH
Muzzle Velocity
2,150
fps
Muzzle Energy
4,618
ft-lbs
Ballistic Coefficient
0.338 G1
G1
Sectional Density
0.371
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,150fps | 4,618ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 1,918fps | 3,674ft-lbs | 0 | 0 | 1.4 | 0.148 |
| 200 yd | 1,702fps | 2,895ft-lbs | -8 | -3.8 | 6.1 | 0.314 |
| 300 yd | 1,506fps | 2,267ft-lbs | -28.1 | -8.9 | 14.6 | 0.501 |
| 400 yd | 1,335fps | 1,781ft-lbs | -63.5 | -15.2 | 27.3 | 0.713 |
| 500 yd | 1,194fps | 1,424ft-lbs | -118.5 | -22.6 | 44.6 | 0.951 |
| 600 yd | 1,088fps | 1,182ft-lbs | -197.9 | -31.5 | 66.5 | 1.215 |
| 700 yd | 1,012fps | 1,023ft-lbs | -306.6 | -41.8 | 92.4 | 1.502 |
| 800 yd | 954fps | 909ft-lbs | -449.3 | -53.6 | 121.6 | 1.807 |
| 900 yd | 907fps | 822ft-lbs | -630.3 | -66.9 | 154 | 2.131 |
| 1000 yd | 866fps | 750ft-lbs | -853.6 | -81.5 | 189.1 | 2.47 |
Bullet Information
ManufacturerNorma
Bullet450gr African PH
Diameter0.416" (10.6mm)
ConstructionBonded
BC (G1)0.338 G1
Sectional Density0.371
