Muzzle Velocity
2,100
fps
Muzzle Energy
5,385
ft-lbs
Ballistic Coefficient
0.340
G1
Sectional Density
0.375
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,100fps | 5,385ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 1,872fps | 4,281ft-lbs | 0 | 0 | 1.5 | 0.151 |
| 200 yd | 1,662fps | 3,372ft-lbs | -8.5 | -4 | 6.3 | 0.321 |
| 300 yd | 1,472fps | 2,644ft-lbs | -29.6 | -9.4 | 14.9 | 0.513 |
| 400 yd | 1,306fps | 2,084ft-lbs | -66.8 | -16 | 27.9 | 0.73 |
| 500 yd | 1,172fps | 1,678ft-lbs | -124.5 | -23.8 | 45.5 | 0.973 |
| 600 yd | 1,073fps | 1,405ft-lbs | -207.4 | -33 | 67.6 | 1.241 |
| 700 yd | 1,001fps | 1,224ft-lbs | -320.6 | -43.7 | 93.5 | 1.531 |
| 800 yd | 946fps | 1,092ft-lbs | -468.4 | -55.9 | 122.7 | 1.84 |
| 900 yd | 900fps | 989ft-lbs | -655.1 | -69.5 | 154.9 | 2.166 |
| 1000 yd | 861fps | 904ft-lbs | -884.9 | -84.5 | 189.9 | 2.507 |

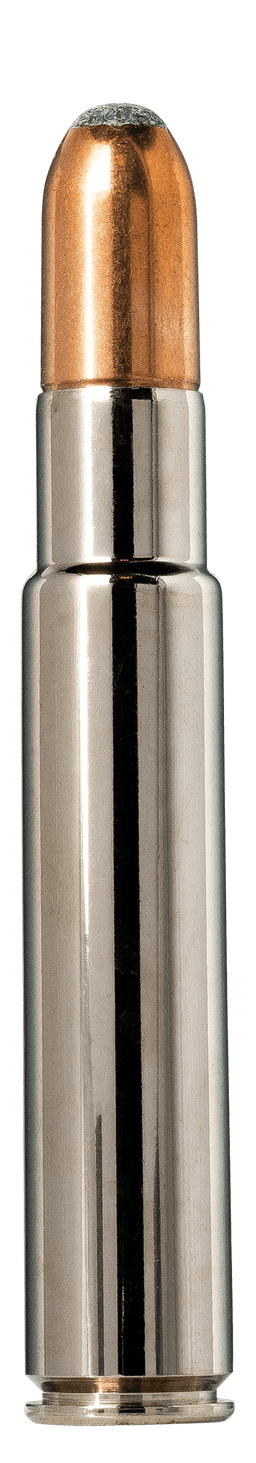

Bullet Information
ManufacturerNorma
Bullet550gr African PH
Diameter0.458" (11.6mm)
ConstructionBonded
BC (G1)0.340 G1
Sectional Density0.375
Load Information
More .450 Rigby Loads

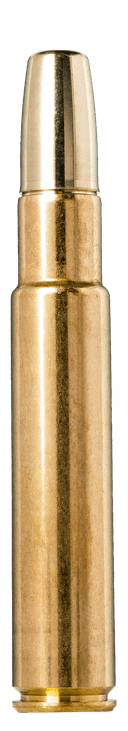

Norma
African Ph Solids
.450 Rigby · 500gr · African PH Solids
MV: 2,500fps
BC: 0.269 G1
Energy: 6,938ft-lbs
Type: Hunting
Other Loads Using the African PH
Norma
African Ph
.458 Lott · 550gr · African PH
MV: 2,100fps
BC: 0.340 G1
Energy: 5,385ft-lbs
Type: Hunting
Similar Loads in Other Cartridges
Norma
African Ph
.458 Lott · 550gr · African PH
MV: 2,100fps
BC: 0.340 G1
Energy: 5,385ft-lbs
Type: Hunting
