Muzzle Velocity
3,440
fps
Muzzle Energy
2,364
ft-lbs
Ballistic Coefficient
0.259 G1
G1
Sectional Density
0.195
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,440fps | 2,364ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 3,036fps | 1,842ft-lbs | 0 | 0 | 1 | 0.093 |
| 200 yd | 2,667fps | 1,422ft-lbs | -2.3 | -1.1 | 4.2 | 0.198 |
| 300 yd | 2,327fps | 1,082ft-lbs | -9.5 | -3 | 10 | 0.319 |
| 400 yd | 2,013fps | 809ft-lbs | -23.2 | -5.5 | 19.1 | 0.457 |
| 500 yd | 1,725fps | 595ft-lbs | -45.5 | -8.7 | 32.1 | 0.618 |
| 600 yd | 1,471fps | 433ft-lbs | -79.6 | -12.7 | 49.9 | 0.807 |
| 700 yd | 1,261fps | 318ft-lbs | -129.9 | -17.7 | 73.4 | 1.028 |
| 800 yd | 1,106fps | 244ft-lbs | -202.1 | -24.1 | 103 | 1.283 |
| 900 yd | 1,005fps | 202ft-lbs | -302.7 | -32.1 | 137.9 | 1.568 |
| 1000 yd | 933fps | 174ft-lbs | -437.7 | -41.8 | 177.1 | 1.879 |
Bullet Information

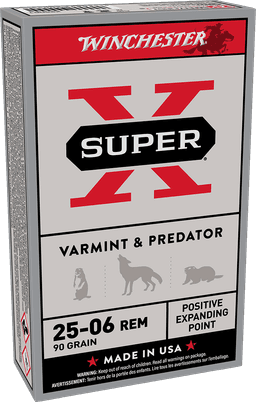

ManufacturerWinchester
Bullet90gr Positive Expanding Point
Diameter0.257"
ConstructionOther
BC (G1)0.259 G1
Sectional Density0.195
Load Information
More .25-06 Rem Loads
Winchester
Ballistic Silvertip
.25-06 Remington · 85gr · Rapid Controlled Expansion Polymer Tip
MV: 3,470fps
BC: 0.333 G1
Energy: 2,272ft-lbs
Type: Hunting
Hornady
Superformance
.25-06 Remington · 90gr · CX
MV: 3,350fps
BC: 0.273 G1
Energy: 2,242ft-lbs
Type: Hunting
Nosler
Trophy Grade
.25-06 Remington · 100gr · Partition
MV: 3,300fps
BC: 0.377 G1
Energy: 2,418ft-lbs
Type: Hunting
Remington
Core-Lokt
.25-06 Remington · 100gr · Core-Lokt Soft Point
MV: 3,230fps
BC: 0.292 G1
Energy: 2,316ft-lbs
Type: Hunting
Barnes
VOR-TX Rifle
.25-06 Remington · 100gr · TTSX
MV: 3,225fps
BC: 0.357 G1
Energy: 2,309ft-lbs
Type: Hunting
Federal Premium
Barnes TSX
.25-06 Remington · 100gr · TTSX
MV: 3,210fps
BC: 0.336 G1
Energy: 2,288ft-lbs
Type: Hunting
Similar Loads in Other Cartridges
Remington
1xCore-Lokt
.250 Savage · 100gr · Core-Lokt Soft Point
MV: 2,820fps
BC: 0.292 G1
Energy: 1,765ft-lbs
Type: Hunting
Weatherby
Select
.257 Wby Mag · 92gr · Hammer Hunter
MV: 3,700fps
BC: 0.322 G1
Energy: 2,796ft-lbs
Type: Hunting
Hornady
Outfitter
.257 Wby Mag · 90gr · CX
MV: 3,625fps
BC: 0.273 G1
Energy: 2,626ft-lbs
Type: Hunting
Weatherby
Select
.257 Wby Mag · 100gr · InterLock
MV: 3,602fps
BC: 0.357 G1
Energy: 2,880ft-lbs
Type: Hunting
Weatherby
Select
.257 Wby Mag · 100gr · Scirocco
MV: 3,575fps
BC: 0.429 G1
Energy: 2,837ft-lbs
Type: Hunting
Weatherby
Select
.257 Wby Mag · 100gr · TTSX
MV: 3,570fps
BC: 0.357 G1
Energy: 2,829ft-lbs
Type: Hunting
