Muzzle Velocity
2,986
fps
Muzzle Energy
3,563
ft-lbs
Ballistic Coefficient
0.361
G1
Sectional Density
0.246
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,986fps | 3,563ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,721fps | 2,959ft-lbs | 0 | 0 | 0.8 | 0.105 |
| 200 yd | 2,472fps | 2,441ft-lbs | -3.2 | -1.5 | 3.5 | 0.221 |
| 300 yd | 2,236fps | 1,997ft-lbs | -12.1 | -3.9 | 8.3 | 0.349 |
| 400 yd | 2,013fps | 1,619ft-lbs | -28 | -6.7 | 15.5 | 0.49 |
| 500 yd | 1,803fps | 1,300ft-lbs | -52.5 | -10 | 25.5 | 0.648 |
| 600 yd | 1,610fps | 1,036ft-lbs | -87.8 | -14 | 38.9 | 0.824 |
| 700 yd | 1,436fps | 824ft-lbs | -136.5 | -18.6 | 55.9 | 1.021 |
| 800 yd | 1,285fps | 660ft-lbs | -202.2 | -24.1 | 77.2 | 1.242 |
| 900 yd | 1,162fps | 540ft-lbs | -288.9 | -30.7 | 102.8 | 1.488 |
| 1000 yd | 1,071fps | 458ft-lbs | -401.3 | -38.3 | 132.5 | 1.758 |

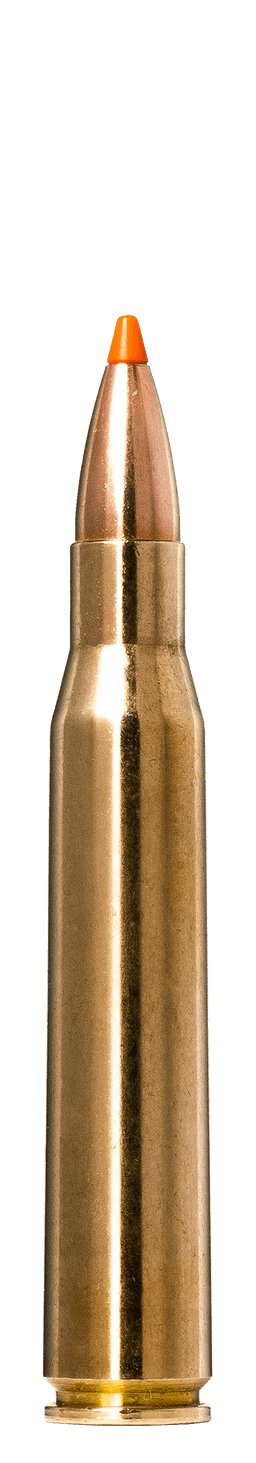

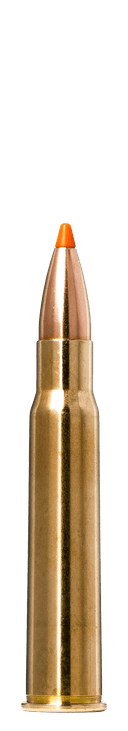

Bullet Information
ManufacturerNorma
Bullet180gr Tipstrike
Diameter0.323"
ConstructionSoft Point
BC (G1)0.361 G1
Sectional Density0.246
Load Information
Other Loads Using the Tipstrike
Norma
Tipstrike
8x57 JS Mauser · 180gr · Tipstrike
MV: 2,625fps
BC: 0.361 G1
Energy: 2,754ft-lbs
Type: Hunting
Norma
Tipstrike
8x57 JS Mauser · 180gr · Tipstrike
MV: 2,493fps
BC: 0.361 G1
Energy: 2,484ft-lbs
Type: Hunting
Similar Loads in Other Cartridges
Federal Premium
3xPower-Shok
8x57 JS Mauser · 170gr · Jacketed
MV: 2,250fps
BC: 0.354 G1
Energy: 1,911ft-lbs
Type: Hunting
Nosler
Expansion Tip
.325 WSM · 180gr · Expansion Tip
MV: 3,050fps
BC: 0.427 G1
Energy: 3,717ft-lbs
Type: Hunting
Lapua
Naturalis
8x57 JRS Mauser · 180gr · Naturalis
MV: 2,641fps
BC: 0.179 G7
Energy: 2,787ft-lbs
Type: Hunting
Lapua
Naturalis
8x57 JS Mauser · 180gr · Naturalis
MV: 2,625fps
BC: 0.179 G7
Energy: 2,754ft-lbs
Type: Hunting
Norma
Tipstrike
8x57 JS Mauser · 180gr · Tipstrike
MV: 2,625fps
BC: 0.361 G1
Energy: 2,754ft-lbs
Type: Hunting
Nosler
Expansion Tip
8x57 JS Mauser · 180gr · Expansion Tip
MV: 2,550fps
BC: 0.427 G1
Energy: 2,598ft-lbs
Type: Hunting
