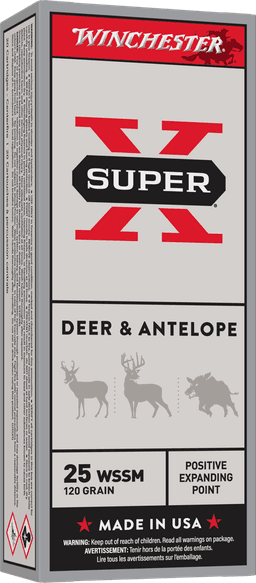

Winchester
Super-X
.25 Winchester Super Short Magnum · 120gr · Positive Expanding Point
Muzzle Velocity
2,990
fps
Muzzle Energy
2,382
ft-lbs
Ballistic Coefficient
0.344 G1
G1
Sectional Density
0.260
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,990fps | 2,382ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,712fps | 1,960ft-lbs | 0 | 0 | 0.9 | 0.105 |
| 200 yd | 2,451fps | 1,601ft-lbs | -3.2 | -1.5 | 3.7 | 0.222 |
| 300 yd | 2,205fps | 1,295ft-lbs | -12.3 | -3.9 | 8.8 | 0.351 |
| 400 yd | 1,973fps | 1,037ft-lbs | -28.5 | -6.8 | 16.4 | 0.495 |
| 500 yd | 1,757fps | 822ft-lbs | -53.7 | -10.3 | 27.1 | 0.656 |
| 600 yd | 1,559fps | 648ft-lbs | -90.2 | -14.4 | 41.4 | 0.837 |
| 700 yd | 1,383fps | 510ft-lbs | -141.1 | -19.3 | 59.7 | 1.042 |
| 800 yd | 1,235fps | 406ft-lbs | -210.2 | -25.1 | 82.5 | 1.271 |
| 900 yd | 1,119fps | 334ft-lbs | -302.2 | -32.1 | 109.9 | 1.527 |
| 1000 yd | 1,036fps | 286ft-lbs | -421.9 | -40.3 | 141.4 | 1.807 |
Bullet Information
ManufacturerWinchester
Bullet120gr Positive Expanding Point
Diameter0.257"
ConstructionOther
BC (G1)0.344 G1
Sectional Density0.260
Load Information
Cartridge.25 Winchester Super Short Magnum
ManufacturerWinchester
Product LineSuper-X
CategoryHunting
SKUX25WSS
