Muzzle Velocity
2,362
fps
Muzzle Energy
2,874
ft-lbs
Ballistic Coefficient
0.267
G1
Sectional Density
0.247
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,362fps | 2,874ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,054fps | 2,173ft-lbs | 0 | 0 | 1.6 | 0.136 |
| 200 yd | 1,771fps | 1,615ft-lbs | -6.8 | -3.2 | 7 | 0.294 |
| 300 yd | 1,518fps | 1,187ft-lbs | -24.8 | -7.9 | 16.8 | 0.477 |
| 400 yd | 1,304fps | 875ft-lbs | -58 | -13.8 | 32.1 | 0.69 |
| 500 yd | 1,140fps | 669ft-lbs | -111.7 | -21.3 | 53.2 | 0.937 |
| 600 yd | 1,030fps | 546ft-lbs | -192.1 | -30.6 | 79.7 | 1.215 |
| 700 yd | 954fps | 469ft-lbs | -305.3 | -41.6 | 110.8 | 1.518 |
| 800 yd | 895fps | 413ft-lbs | -456.7 | -54.5 | 145.7 | 1.844 |
| 900 yd | 846fps | 369ft-lbs | -651.6 | -69.1 | 184.1 | 2.189 |
| 1000 yd | 803fps | 332ft-lbs | -895.2 | -85.5 | 226 | 2.554 |

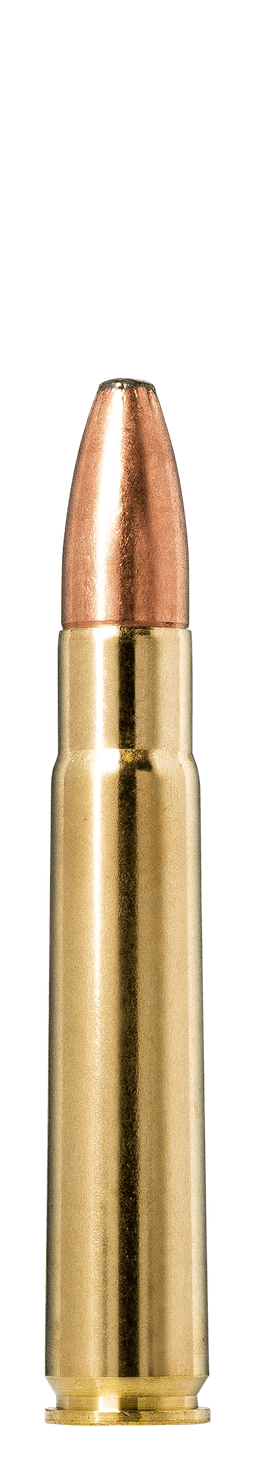

Bullet Information
ManufacturerNorma
Bullet232gr Oryx
Diameter0.366"
ConstructionBonded
BC (G1)0.267 G1
Sectional Density0.247
Load Information
More 9.3x57 Loads

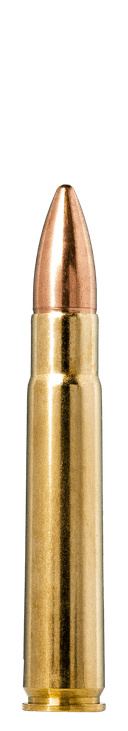

Norma
Jaktmatch
9.3x57 · 232gr · Jaktmatch
MV: 2,215fps
BC: 0.275 G1
Energy: 2,527ft-lbs
Type: Match
Other Loads Using the Oryx
Similar Loads in Other Cartridges
Norma
Jaktmatch
9.3x62 · 232gr · Jaktmatch
MV: 2,510fps
BC: 0.275 G1
Energy: 3,245ft-lbs
Type: Hunting
