Muzzle Velocity
2,960
fps
Muzzle Energy
3,890
ft-lbs
Ballistic Coefficient
0.308 G1
G1
Sectional Density
0.250
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,960fps | 3,890ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,653fps | 3,125ft-lbs | 0 | 0 | 1 | 0.107 |
| 200 yd | 2,366fps | 2,486ft-lbs | -3.5 | -1.7 | 4.2 | 0.227 |
| 300 yd | 2,098fps | 1,954ft-lbs | -13.2 | -4.2 | 10.1 | 0.361 |
| 400 yd | 1,847fps | 1,515ft-lbs | -30.8 | -7.4 | 19.1 | 0.514 |
| 500 yd | 1,618fps | 1,163ft-lbs | -58.7 | -11.2 | 31.8 | 0.687 |
| 600 yd | 1,415fps | 889ft-lbs | -100 | -15.9 | 48.9 | 0.886 |
| 700 yd | 1,245fps | 688ft-lbs | -158.6 | -21.6 | 70.9 | 1.112 |
| 800 yd | 1,115fps | 552ft-lbs | -239.8 | -28.6 | 98 | 1.368 |
| 900 yd | 1,025fps | 466ft-lbs | -348.9 | -37 | 129.7 | 1.649 |
| 1000 yd | 959fps | 409ft-lbs | -491 | -46.9 | 165.2 | 1.952 |
Bullet Information

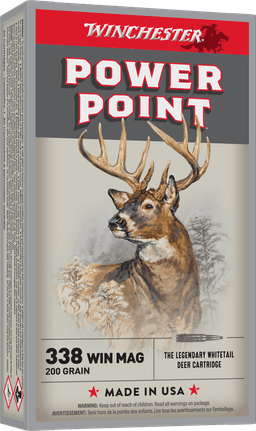

ManufacturerWinchester
Bullet200gr Power-Point
Diameter0.338" (8.6mm)
ConstructionSoft Point
BC (G1)0.308 G1
Sectional Density0.250
Load Information
More .338 Win Mag Loads
Hornady
Superformance
.338 Win Mag · 200gr · SST
MV: 3,030fps
BC: 0.455 G1
Energy: 4,076ft-lbs
Type: Hunting
Norma
Ecostrike
.338 Win Mag · 200gr · Ecostrike
MV: 2,953fps
BC: 0.441 G1
Energy: 3,872ft-lbs
Type: Hunting
Federal Premium
Trophy Bonded Tip
.338 Win Mag · 200gr · Trophy Bonded Tip
MV: 2,930fps
BC: 0.440 G1
Energy: 3,812ft-lbs
Type: Hunting
Barnes
VOR-TX Rifle
.338 Win Mag · 210gr · TTSX
MV: 2,865fps
BC: 0.482 G1
Energy: 3,827ft-lbs
Type: Hunting
Nosler
Trophy Grade
.338 Win Mag · 210gr · Partition
MV: 2,850fps
BC: 0.400 G1
Energy: 3,787ft-lbs
Type: Hunting
Hornady
Superformance
.338 Win Mag · 225gr · SST
MV: 2,840fps
BC: 0.515 G1
Energy: 4,029ft-lbs
Type: Hunting
