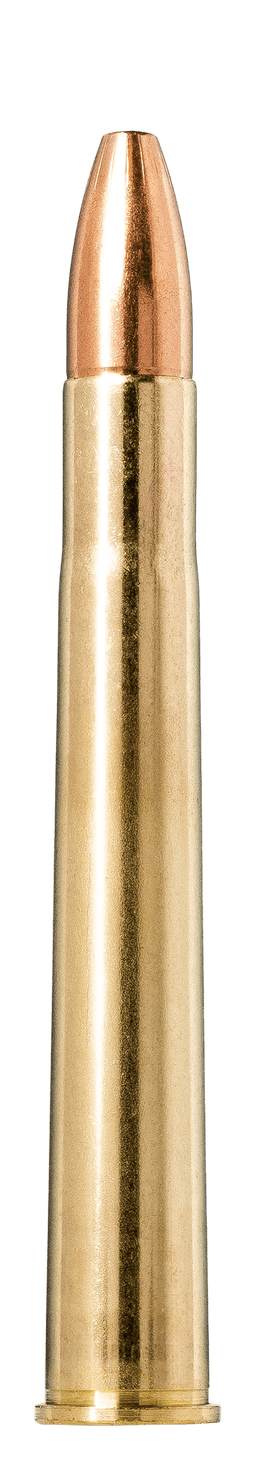

Norma
Vulkan
9.3×74mmR · 232gr · Vulkan
Muzzle Velocity
2,559
fps
Muzzle Energy
3,373
ft-lbs
Ballistic Coefficient
0.278 G1
G1
Sectional Density
0.247
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,559fps | 3,373ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,249fps | 2,605ft-lbs | 0 | 0 | 1.4 | 0.125 |
| 200 yd | 1,961fps | 1,980ft-lbs | -5.4 | -2.6 | 5.9 | 0.268 |
| 300 yd | 1,697fps | 1,483ft-lbs | -20 | -6.4 | 14.2 | 0.432 |
| 400 yd | 1,463fps | 1,102ft-lbs | -46.6 | -11.1 | 27.1 | 0.623 |
| 500 yd | 1,267fps | 826ft-lbs | -89.7 | -17.1 | 45.4 | 0.844 |
| 600 yd | 1,119fps | 645ft-lbs | -154.5 | -24.6 | 69.2 | 1.097 |
| 700 yd | 1,019fps | 535ft-lbs | -247 | -33.7 | 98.2 | 1.379 |
| 800 yd | 949fps | 463ft-lbs | -372.9 | -44.5 | 131.4 | 1.684 |
| 900 yd | 893fps | 411ft-lbs | -537.5 | -57 | 168.2 | 2.011 |
| 1000 yd | 846fps | 369ft-lbs | -745.8 | -71.2 | 208.5 | 2.357 |
Bullet Information
ManufacturerNorma
Bullet232gr Vulkan
Diameter0.366"
ConstructionSoft Point
BC (G1)0.278 G1
Sectional Density0.247
Load Information
