Norma
Oryx

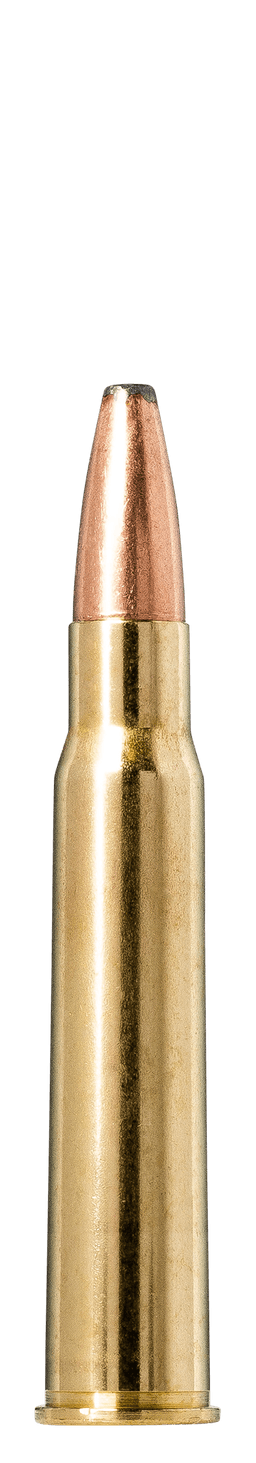

7.92×57mm Mauser · 196gr · Oryx
Muzzle Velocity
2,395
fps
Muzzle Energy
2,496
ft-lbs
Ballistic Coefficient
0.331 G1
G1
Sectional Density
0.268
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,395fps | 2,496ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,143fps | 1,998ft-lbs | 0 | 0 | 1.3 | 0.132 |
| 200 yd | 1,906fps | 1,581ft-lbs | -6.1 | -2.9 | 5.3 | 0.281 |
| 300 yd | 1,687fps | 1,239ft-lbs | -21.8 | -7 | 12.8 | 0.448 |
| 400 yd | 1,489fps | 965ft-lbs | -49.8 | -11.9 | 24 | 0.638 |
| 500 yd | 1,317fps | 755ft-lbs | -93.6 | -17.9 | 39.7 | 0.852 |
| 600 yd | 1,177fps | 603ft-lbs | -157.4 | -25.1 | 60.2 | 1.093 |
| 700 yd | 1,074fps | 502ft-lbs | -246.3 | -33.6 | 85.2 | 1.361 |
| 800 yd | 1,000fps | 436ft-lbs | -365.4 | -43.6 | 114.2 | 1.651 |
| 900 yd | 944fps | 388ft-lbs | -519.1 | -55.1 | 146.6 | 1.96 |
| 1000 yd | 897fps | 350ft-lbs | -711.9 | -68 | 182 | 2.287 |
Bullet Information
ManufacturerNorma
Bullet196gr Oryx
Diameter0.323"
ConstructionBonded
BC (G1)0.331 G1
Sectional Density0.268
Load Information
