Muzzle Velocity
2,864
fps
Muzzle Energy
2,185
ft-lbs
Ballistic Coefficient
0.212
G7
Sectional Density
0.246
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,864fps | 2,185ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,644fps | 1,862ft-lbs | 0 | 0 | 0.8 | 0.109 |
| 200 yd | 2,432fps | 1,576ft-lbs | -3.5 | -1.7 | 3.1 | 0.227 |
| 300 yd | 2,231fps | 1,326ft-lbs | -12.9 | -4.1 | 7.4 | 0.356 |
| 400 yd | 2,040fps | 1,109ft-lbs | -29.2 | -7 | 13.7 | 0.497 |
| 500 yd | 1,858fps | 920ft-lbs | -54 | -10.3 | 22.4 | 0.651 |
| 600 yd | 1,684fps | 756ft-lbs | -88.9 | -14.1 | 33.8 | 0.82 |
| 700 yd | 1,518fps | 614ft-lbs | -136 | -18.6 | 48.4 | 1.008 |
| 800 yd | 1,359fps | 492ft-lbs | -198.3 | -23.7 | 66.7 | 1.217 |
| 900 yd | 1,209fps | 390ft-lbs | -279.6 | -29.7 | 89.5 | 1.451 |
| 1000 yd | 1,082fps | 312ft-lbs | -384.8 | -36.7 | 117.4 | 1.714 |

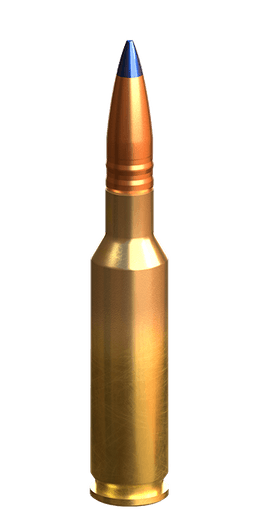

Bullet Information
ManufacturerLapua
Bullet120gr TRX TrueRange Expanding
Diameter0.264" (6.5mm)
ConstructionMonolithic
BC (G7)0.212 G7
BC (G1)0.428 G1
Sectional Density0.246
Load Information
Cartridge6.5 Creedmoor
ManufacturerLapua
Product LineTRX TrueRange Expanding
CategoryNot yet recorded
SKUN316402
