Muzzle Velocity
2,979
fps
Muzzle Energy
3,251
ft-lbs
Ballistic Coefficient
0.243
G7
Sectional Density
0.248
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,979fps | 3,251ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,782fps | 2,836ft-lbs | 0 | 0 | 0.6 | 0.104 |
| 200 yd | 2,592fps | 2,462ft-lbs | -3 | -1.4 | 2.6 | 0.216 |
| 300 yd | 2,410fps | 2,127ft-lbs | -11.2 | -3.6 | 6 | 0.336 |
| 400 yd | 2,235fps | 1,829ft-lbs | -25.4 | -6.1 | 11 | 0.465 |
| 500 yd | 2,067fps | 1,565ft-lbs | -46.5 | -8.9 | 17.8 | 0.605 |
| 600 yd | 1,907fps | 1,332ft-lbs | -75.8 | -12.1 | 26.7 | 0.756 |
| 700 yd | 1,753fps | 1,126ft-lbs | -114.7 | -15.6 | 37.9 | 0.92 |
| 800 yd | 1,605fps | 943ft-lbs | -164.9 | -19.7 | 51.6 | 1.099 |
| 900 yd | 1,462fps | 783ft-lbs | -228.7 | -24.3 | 68.4 | 1.295 |
| 1000 yd | 1,325fps | 644ft-lbs | -308.8 | -29.5 | 88.6 | 1.51 |
Bullet Information
ManufacturerLapua

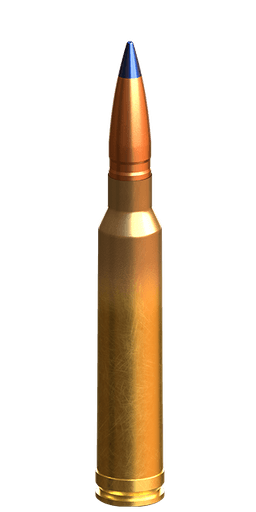

Bullet165gr TRX TrueRange Expanding
Diameter0.308" (7.62mm)
ConstructionMonolithic
BC (G7)0.243 G7
BC (G1)0.490 G1
Sectional Density0.248
Load Information
Cartridge.300 Winchester Magnum
ManufacturerLapua
Product LineTRX TrueRange Expanding
CategoryHunting
SKUN317205
