Muzzle Velocity
2,500
fps
Muzzle Energy
1,068
ft-lbs
Ballistic Coefficient
0.319 G1
G1
Sectional Density
0.219
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,500fps | 1,068ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,232fps | 852ft-lbs | 0 | 0 | 1.2 | 0.127 |
| 200 yd | 1,981fps | 671ft-lbs | -5.5 | -2.6 | 5.2 | 0.27 |
| 300 yd | 1,748fps | 522ft-lbs | -19.9 | -6.3 | 12.5 | 0.431 |
| 400 yd | 1,536fps | 403ft-lbs | -45.8 | -10.9 | 23.6 | 0.614 |
| 500 yd | 1,351fps | 312ft-lbs | -86.5 | -16.5 | 39.2 | 0.823 |
| 600 yd | 1,199fps | 246ft-lbs | -146.3 | -23.3 | 59.6 | 1.059 |
| 700 yd | 1,086fps | 202ft-lbs | -230.2 | -31.4 | 84.9 | 1.322 |
| 800 yd | 1,007fps | 173ft-lbs | -343.7 | -41 | 114.4 | 1.61 |
| 900 yd | 947fps | 153ft-lbs | -491.4 | -52.1 | 147.4 | 1.918 |
| 1000 yd | 898fps | 138ft-lbs | -677.9 | -64.7 | 183.7 | 2.244 |
Bullet Information

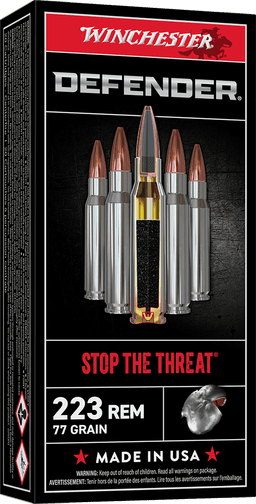

ManufacturerWinchester
Bullet77gr Split Core
Diameter0.224" (5.56mm)
ConstructionHollow Point
BC (G1)0.319 G1
Sectional Density0.219
Load Information
More .223 Rem Loads
Nosler
Defense
.223 Remington · 64gr · Bonded Performance
MV: Not published
Energy: —
Type: Hunting
Hornady
Hornady International
.223 Remington · 50gr · ECX
MV: Not published
BC: 0.164 G1
Energy: —
Type: Hunting
Norma
Range And Training
.223 Remington · 55gr · Range & Training
MV: Not published
Energy: —
Type: Plinking
Hornady
Superformance Varmint
.223 Remington · 35gr · NTX
MV: 4,000fps
BC: 0.177 G1
Energy: 1,243ft-lbs
Type: Varmint
Winchester
Varmint X Lead Free
.223 Remington · 38gr · Zinc Core Lead Free Rapid Expansion
MV: 3,800fps
BC: 0.156 G1
Energy: 1,218ft-lbs
Type: Varmint
Similar Loads in Other Cartridges
Federal Premium
8xAmerican Eagle
.224 Valkyrie · 75gr · Total Metal Jacket
MV: 3,000fps
BC: 0.400 G1
Energy: 1,499ft-lbs
Type: Match
Hornady
2xMatch
22 Creedmoor · 80gr · ELD Match
MV: 3,285fps
BC: 0.244 G7
Energy: 1,917ft-lbs
Type: Match
Hornady
2xPrecision Hunter
22 Creedmoor · 80gr · ELD-X
MV: 3,285fps
BC: 0.244 G7
Energy: 1,917ft-lbs
Type: Hunting
Hornady
V-Match
22 Creedmoor · 69gr · ELD-VT
MV: 3,550fps
BC: 0.214 G7
Energy: 1,931ft-lbs
Type: Match
Nosler
Trophy Grade
22 Creedmoor · 70gr · AccuBond
MV: 3,350fps
BC: 0.370 G1
Energy: 1,744ft-lbs
Type: Hunting
Nosler
Match Grade
22 Creedmoor · 85gr · RDF
MV: 3,175fps
BC: 0.245 G7
Energy: 1,902ft-lbs
Type: Match
