Muzzle Velocity
3,133
fps
Muzzle Energy
1,199
ft-lbs
Ballistic Coefficient
0.255
G1
Sectional Density
0.157
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,133fps | 1,199ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,751fps | 924ft-lbs | 0 | 0 | 1.1 | 0.102 |
| 200 yd | 2,399fps | 703ft-lbs | -3.1 | -1.5 | 4.8 | 0.219 |
| 300 yd | 2,074fps | 525ft-lbs | -12.3 | -3.9 | 11.7 | 0.354 |
| 400 yd | 1,777fps | 385ft-lbs | -29.7 | -7.1 | 22.3 | 0.51 |
| 500 yd | 1,512fps | 279ft-lbs | -58.2 | -11.1 | 37.7 | 0.693 |
| 600 yd | 1,290fps | 203ft-lbs | -102 | -16.2 | 58.7 | 0.908 |
| 700 yd | 1,124fps | 154ft-lbs | -166.8 | -22.7 | 85.9 | 1.158 |
| 800 yd | 1,015fps | 126ft-lbs | -259 | -30.9 | 118.7 | 1.44 |
| 900 yd | 940fps | 108ft-lbs | -385 | -40.8 | 156 | 1.748 |
| 1000 yd | 882fps | 95ft-lbs | -550.3 | -52.5 | 197.2 | 2.078 |

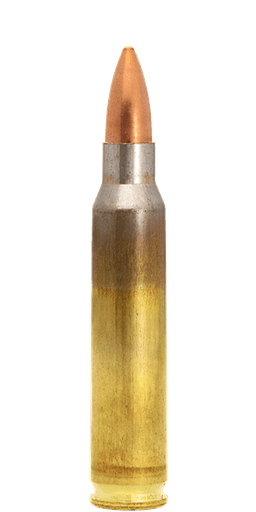

Bullet Information
ManufacturerLapua
Bullet55gr FMJ
Diameter0.224" (5.56mm)
ConstructionFMJ
BC (G1)0.255 G1
Sectional Density0.157
Load Information
