Muzzle Velocity
2,860
fps
Muzzle Energy
3,178
ft-lbs
Ballistic Coefficient
0.426 G1
G1
Sectional Density
0.310
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,860fps | 3,178ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,641fps | 2,710ft-lbs | 0 | 0 | 0.8 | 0.109 |
| 200 yd | 2,432fps | 2,298ft-lbs | -3.5 | -1.7 | 3.1 | 0.228 |
| 300 yd | 2,233fps | 1,938ft-lbs | -12.9 | -4.1 | 7.3 | 0.356 |
| 400 yd | 2,043fps | 1,622ft-lbs | -29.3 | -7 | 13.6 | 0.497 |
| 500 yd | 1,864fps | 1,349ft-lbs | -54 | -10.3 | 22.2 | 0.65 |
| 600 yd | 1,695fps | 1,116ft-lbs | -88.7 | -14.1 | 33.4 | 0.819 |
| 700 yd | 1,538fps | 919ft-lbs | -135.7 | -18.5 | 47.7 | 1.005 |
| 800 yd | 1,396fps | 758ft-lbs | -197.3 | -23.6 | 65.3 | 1.21 |
| 900 yd | 1,272fps | 629ft-lbs | -276.8 | -29.4 | 86.5 | 1.435 |
| 1000 yd | 1,169fps | 531ft-lbs | -377.8 | -36.1 | 111.4 | 1.682 |
Bullet Information

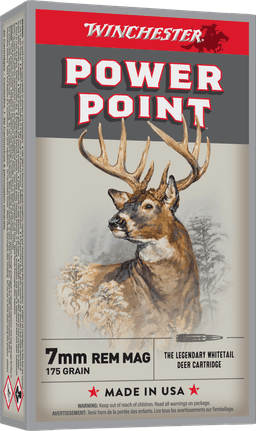

ManufacturerWinchester
Bullet175gr Power-Point
Diameter0.284" (7mm)
ConstructionSoft Point
BC (G1)0.426 G1
Sectional Density0.310
Load Information
