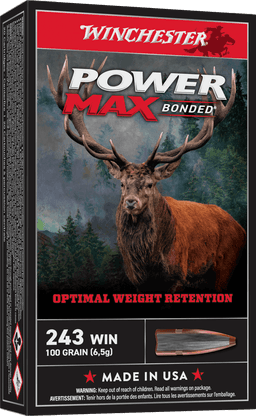

Winchester
Power Max Bonded
.243 Winchester · 100gr · Bonded Rapid Expansion Protected
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,960fps | 1,945ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,704fps | 1,624ft-lbs | 0 | 0 | 0.8 | 0.106 |
| 200 yd | 2,463fps | 1,347ft-lbs | -3.3 | -1.6 | 3.4 | 0.222 |
| 300 yd | 2,234fps | 1,108ft-lbs | -12.3 | -3.9 | 8.1 | 0.35 |
| 400 yd | 2,017fps | 904ft-lbs | -28.3 | -6.8 | 15.2 | 0.492 |
| 500 yd | 1,814fps | 731ft-lbs | -52.9 | -10.1 | 24.9 | 0.648 |
| 600 yd | 1,625fps | 587ft-lbs | -88.1 | -14 | 37.8 | 0.823 |
| 700 yd | 1,454fps | 470ft-lbs | -136.5 | -18.6 | 54.4 | 1.018 |
| 800 yd | 1,305fps | 378ft-lbs | -201.4 | -24 | 74.9 | 1.236 |
| 900 yd | 1,181fps | 310ft-lbs | -286.7 | -30.4 | 99.7 | 1.478 |
| 1000 yd | 1,087fps | 262ft-lbs | -397 | -37.9 | 128.5 | 1.744 |
Bullet Information
Load Information
