Norma
Diamond Line

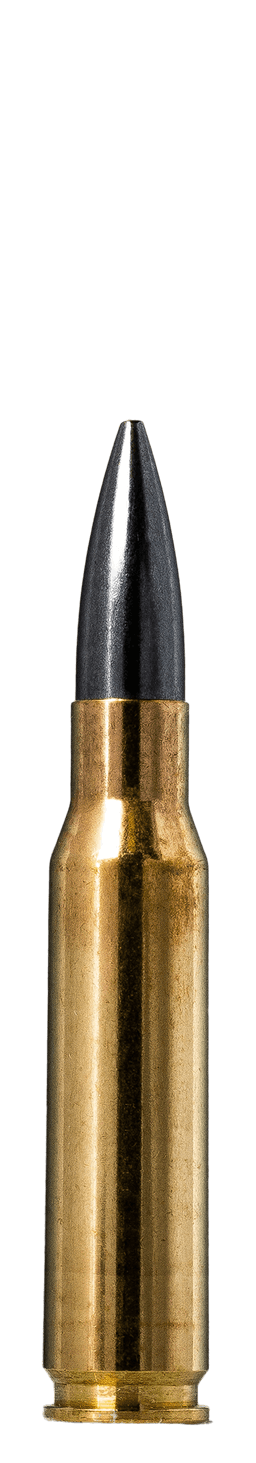

.308 Winchester · 168gr · Diamond Line
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,549fps | 2,423ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,360fps | 2,078ft-lbs | 0 | 0 | 0.8 | 0.122 |
| 200 yd | 2,179fps | 1,771ft-lbs | -4.8 | -2.3 | 3.4 | 0.255 |
| 300 yd | 2,006fps | 1,501ft-lbs | -16.8 | -5.4 | 7.9 | 0.398 |
| 400 yd | 1,842fps | 1,266ft-lbs | -37.6 | -9 | 14.7 | 0.554 |
| 500 yd | 1,687fps | 1,062ft-lbs | -68.6 | -13.1 | 23.9 | 0.724 |
| 600 yd | 1,543fps | 888ft-lbs | -111.9 | -17.8 | 35.9 | 0.91 |
| 700 yd | 1,411fps | 743ft-lbs | -169.8 | -23.2 | 51 | 1.114 |
| 800 yd | 1,294fps | 625ft-lbs | -245.2 | -29.3 | 69.4 | 1.336 |
| 900 yd | 1,194fps | 532ft-lbs | -341.3 | -36.2 | 91.2 | 1.578 |
| 1000 yd | 1,113fps | 462ft-lbs | -461.9 | -44.1 | 116.4 | 1.838 |
Bullet Information
Load Information
