Muzzle Velocity
2,920
fps
Muzzle Energy
2,839
ft-lbs
Ballistic Coefficient
0.347 G1
G1
Sectional Density
0.226
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,920fps | 2,839ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,649fps | 2,337ft-lbs | 0 | 0 | 0.9 | 0.108 |
| 200 yd | 2,394fps | 1,908ft-lbs | -3.5 | -1.7 | 3.8 | 0.227 |
| 300 yd | 2,153fps | 1,543ft-lbs | -13 | -4.1 | 9 | 0.359 |
| 400 yd | 1,926fps | 1,235ft-lbs | -30.1 | -7.2 | 16.8 | 0.507 |
| 500 yd | 1,715fps | 980ft-lbs | -56.6 | -10.8 | 27.8 | 0.672 |
| 600 yd | 1,523fps | 772ft-lbs | -95 | -15.1 | 42.4 | 0.857 |
| 700 yd | 1,354fps | 610ft-lbs | -148.5 | -20.3 | 61.1 | 1.066 |
| 800 yd | 1,212fps | 489ft-lbs | -220.9 | -26.4 | 84.3 | 1.301 |
| 900 yd | 1,103fps | 405ft-lbs | -317.1 | -33.6 | 112 | 1.561 |
| 1000 yd | 1,025fps | 350ft-lbs | -441.8 | -42.2 | 143.7 | 1.844 |
Bullet Information
ManufacturerNorma
Bullet150gr Tipstrike
Diameter0.308" (7.62mm)
ConstructionSoft Point
BC (G1)0.347 G1
Sectional Density0.226
Load Information
Cartridge.30-06 Springfield
ManufacturerNorma
Product LineTipstrike
CategoryHunting
Test Barrel24"
SKU20177682
More .30-06 Sprg Loads
Norma
4xBondstrike
.30-06 Sprg · 180gr · Bondstrike
MV: 2,756fps
BC: 0.615 G1
Energy: 3,035ft-lbs
Type: Hunting
Nosler
3xBallistic Tip Hunting
.30-06 Sprg · 165gr · Ballistic Tip Hunting
MV: 2,950fps
BC: 0.475 G1
Energy: 3,188ft-lbs
Type: Hunting
Nosler
2xTrophy Grade
.30-06 Sprg · 165gr · AccuBond
MV: 2,950fps
BC: 0.475 G1
Energy: 3,188ft-lbs
Type: Hunting
Barnes
2xVOR-TX Rifle
.30-06 Sprg · 168gr · TTSX
MV: 2,850fps
BC: 0.470 G1
Energy: 3,029ft-lbs
Type: Hunting
Federal Premium
2xBerger Hybrid Hunter
.30-06 Sprg · 168gr · Hybrid Hunter
MV: 2,800fps
BC: 0.251 G7
Energy: 2,924ft-lbs
Type: Hunting
Federal Premium
2x250th Anniversary USA
.30-06 Sprg · 150gr · Full Metal Jacket
MV: 2,740fps
BC: 0.410 G1
Energy: 2,500ft-lbs
Type: Match
Other Loads Using the Tipstrike
Norma
Tipstrike

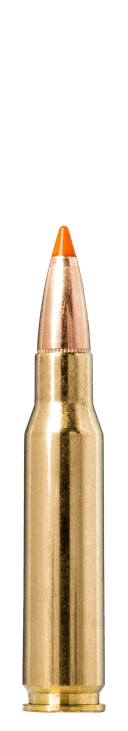

.308 Winchester · 150gr · Tipstrike
