Norma
Tipstrike

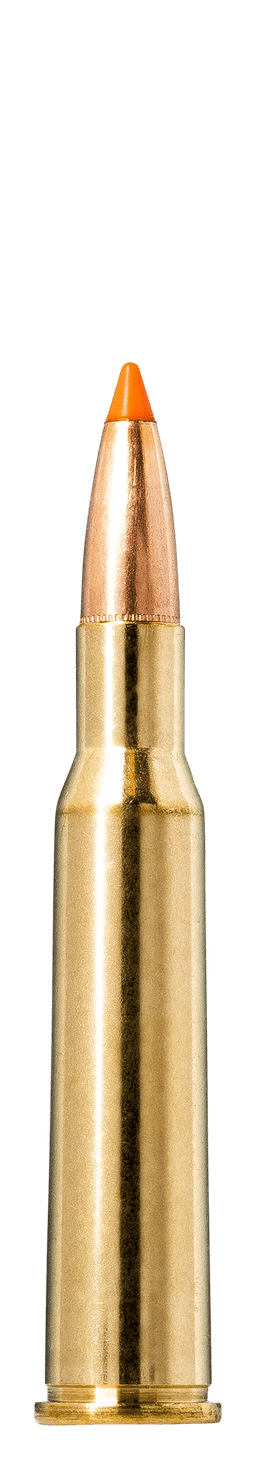

7×57mmR · 160gr · Tipstrike
Muzzle Velocity
2,625
fps
Muzzle Energy
2,448
ft-lbs
Ballistic Coefficient
0.510 G1
G1
Sectional Density
0.283
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,625fps | 2,448ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,451fps | 2,133ft-lbs | 0 | 0 | 0.7 | 0.118 |
| 200 yd | 2,283fps | 1,851ft-lbs | -4.3 | -2.1 | 2.9 | 0.245 |
| 300 yd | 2,122fps | 1,599ft-lbs | -15.3 | -4.9 | 6.8 | 0.381 |
| 400 yd | 1,967fps | 1,375ft-lbs | -34 | -8.1 | 12.5 | 0.528 |
| 500 yd | 1,820fps | 1,177ft-lbs | -61.7 | -11.8 | 20.3 | 0.687 |
| 600 yd | 1,680fps | 1,003ft-lbs | -99.9 | -15.9 | 30.4 | 0.858 |
| 700 yd | 1,550fps | 853ft-lbs | -150.5 | -20.5 | 43 | 1.044 |
| 800 yd | 1,429fps | 726ft-lbs | -215.6 | -25.7 | 58.4 | 1.246 |
| 900 yd | 1,321fps | 620ft-lbs | -297.7 | -31.6 | 76.7 | 1.465 |
| 1000 yd | 1,225fps | 533ft-lbs | -399.8 | -38.2 | 98.2 | 1.701 |
Bullet Information
ManufacturerNorma
Bullet160gr Tipstrike
Diameter0.284" (7mm)
ConstructionSoft Point
BC (G1)0.510 G1
Sectional Density0.283
Load Information
