Muzzle Velocity
2,936
fps
Muzzle Energy
2,354
ft-lbs
Ballistic Coefficient
0.270
G1
Sectional Density
0.185
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,936fps | 2,354ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,589fps | 1,831ft-lbs | 0 | 0 | 1.2 | 0.109 |
| 200 yd | 2,268fps | 1,405ft-lbs | -3.7 | -1.8 | 5 | 0.233 |
| 300 yd | 1,971fps | 1,060ft-lbs | -14.2 | -4.5 | 12 | 0.375 |
| 400 yd | 1,698fps | 788ft-lbs | -33.8 | -8.1 | 22.9 | 0.539 |
| 500 yd | 1,458fps | 580ft-lbs | -65.5 | -12.5 | 38.5 | 0.729 |
| 600 yd | 1,257fps | 432ft-lbs | -113.6 | -18.1 | 59.6 | 0.951 |
| 700 yd | 1,109fps | 336ft-lbs | -183.9 | -25.1 | 86.5 | 1.206 |
| 800 yd | 1,010fps | 279ft-lbs | -282.3 | -33.7 | 118.5 | 1.491 |
| 900 yd | 940fps | 241ft-lbs | -414.8 | -44 | 154.8 | 1.799 |
| 1000 yd | 884fps | 214ft-lbs | -586.7 | -56 | 194.9 | 2.129 |

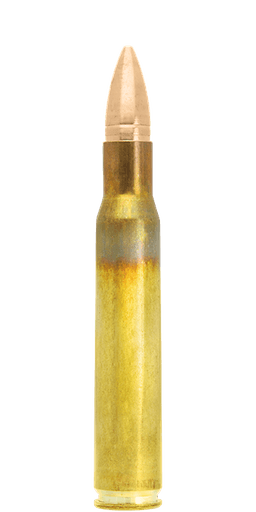

Bullet Information
ManufacturerLapua
Bullet123gr FMJ
Diameter0.308" (7.62mm)
ConstructionFMJ
BC (G1)0.270 G1
Sectional Density0.185
