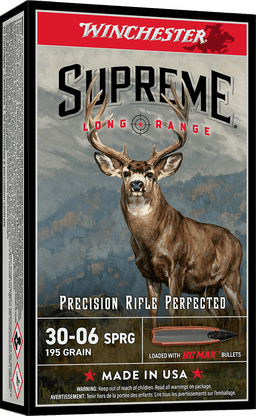

Winchester
Supreme Long Range
.30-06 Springfield · 195gr · BC MAX
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,570fps | 2,859ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,420fps | 2,536ft-lbs | 0 | 0 | 0.6 | 0.12 |
| 200 yd | 2,276fps | 2,242ft-lbs | -4.4 | -2.1 | 2.6 | 0.248 |
| 300 yd | 2,136fps | 1,976ft-lbs | -15.6 | -5 | 6 | 0.384 |
| 400 yd | 2,002fps | 1,734ft-lbs | -34.4 | -8.2 | 11 | 0.529 |
| 500 yd | 1,872fps | 1,517ft-lbs | -61.9 | -11.8 | 17.7 | 0.684 |
| 600 yd | 1,748fps | 1,323ft-lbs | -99.3 | -15.8 | 26.3 | 0.85 |
| 700 yd | 1,631fps | 1,151ft-lbs | -148.1 | -20.2 | 37.1 | 1.028 |
| 800 yd | 1,520fps | 1,001ft-lbs | -210 | -25.1 | 50.1 | 1.218 |
| 900 yd | 1,418fps | 870ft-lbs | -286.9 | -30.4 | 65.5 | 1.423 |
| 1000 yd | 1,324fps | 759ft-lbs | -381.2 | -36.4 | 83.5 | 1.642 |
Bullet Information
Load Information
