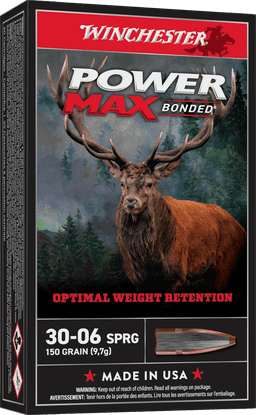

Winchester
Power Max Bonded
.30-06 Springfield · 150gr · Bonded Rapid Expansion Protected
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,920fps | 2,839ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,631fps | 2,306ft-lbs | 0 | 0 | 1 | 0.108 |
| 200 yd | 2,360fps | 1,855ft-lbs | -3.5 | -1.7 | 4.1 | 0.229 |
| 300 yd | 2,106fps | 1,476ft-lbs | -13.4 | -4.3 | 9.7 | 0.363 |
| 400 yd | 1,867fps | 1,161ft-lbs | -31 | -7.4 | 18.2 | 0.515 |
| 500 yd | 1,648fps | 904ft-lbs | -58.8 | -11.2 | 30.3 | 0.686 |
| 600 yd | 1,451fps | 701ft-lbs | -99.3 | -15.8 | 46.3 | 0.88 |
| 700 yd | 1,283fps | 548ft-lbs | -156.5 | -21.4 | 67 | 1.1 |
| 800 yd | 1,149fps | 439ft-lbs | -234.9 | -28 | 92.5 | 1.348 |
| 900 yd | 1,053fps | 369ft-lbs | -339.6 | -36 | 122.6 | 1.621 |
| 1000 yd | 983fps | 322ft-lbs | -475.6 | -45.4 | 156.5 | 1.917 |
