Muzzle Velocity
2,360
fps
Muzzle Energy
2,102
ft-lbs
Ballistic Coefficient
0.205 G1
G1
Sectional Density
0.233
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,360fps | 2,102ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 1,964fps | 1,455ft-lbs | 0 | 0 | 2.2 | 0.139 |
| 200 yd | 1,612fps | 981ft-lbs | -7.6 | -3.6 | 9.5 | 0.308 |
| 300 yd | 1,320fps | 658ft-lbs | -28.8 | -9.2 | 23.4 | 0.514 |
| 400 yd | 1,112fps | 466ft-lbs | -70.1 | -16.7 | 44.8 | 0.763 |
| 500 yd | 987fps | 368ft-lbs | -139.4 | -26.6 | 73.1 | 1.051 |
| 600 yd | 905fps | 309ft-lbs | -244.4 | -38.9 | 106.7 | 1.369 |
| 700 yd | 840fps | 266ft-lbs | -391.8 | -53.5 | 145 | 1.714 |
| 800 yd | 785fps | 233ft-lbs | -588.7 | -70.3 | 187.8 | 2.084 |
| 900 yd | 736fps | 204ft-lbs | -842.3 | -89.4 | 235.1 | 2.48 |
| 1000 yd | 692fps | 181ft-lbs | -1160.4 | -110.8 | 287.1 | 2.902 |
Bullet Information

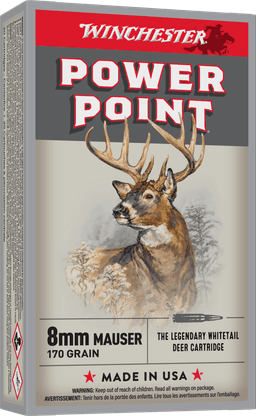

ManufacturerWinchester
Bullet170gr Power-Point
Diameter0.323"
ConstructionSoft Point
BC (G1)0.205 G1
Sectional Density0.233
Load Information
More 7.92×57mm Mauser Loads
Hornady
Hornady International
7.92×57mm Mauser · 180gr · ECX
MV: Not published
BC: 0.257 G1
Energy: —
Type: Hunting
Norma
Evostrike
7.92×57mm Mauser · 139gr · Evostrike
MV: 3,018fps
BC: 0.327 G1
Energy: 2,811ft-lbs
Type: Hunting
Norma
Jaktmatch
7.92×57mm Mauser · 123gr · Jaktmatch
MV: 2,821fps
BC: 0.191 G1
Energy: 2,173ft-lbs
Type: Hunting
Norma
Ecostrike
7.92×57mm Mauser · 160gr · Ecostrike
MV: 2,789fps
BC: 0.353 G1
Energy: 2,763ft-lbs
Type: Hunting
Norma
Ecostrike Silencer Series
7.92×57mm Mauser · 160gr · Ecostrike
MV: 2,707fps
BC: 0.353 G1
Energy: 2,603ft-lbs
Type: Hunting
Norma
Tipstrike
7.92×57mm Mauser · 180gr · Tipstrike
MV: 2,625fps
BC: 0.361 G1
Energy: 2,754ft-lbs
Type: Hunting
Similar Loads in Other Cartridges
Nosler
Expansion Tip
.325 WSM · 180gr · Expansion Tip
MV: 3,050fps
Energy: 3,717ft-lbs
Type: Hunting
Barnes
VOR-TX Euro
8x57 JS Mauser · 160gr · TTSX
MV: 2,770fps
BC: 0.400 G1
Energy: 2,726ft-lbs
Type: Hunting
Nosler
Expansion Tip
8x57 JS Mauser · 180gr · Expansion Tip
MV: 2,550fps
Energy: 2,598ft-lbs
Type: Hunting
