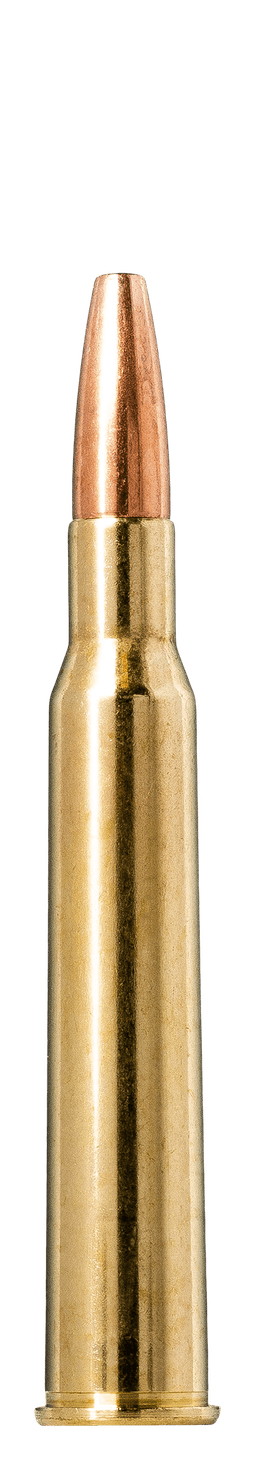

Norma
Vulkan
7×65mmR · 170gr · Vulkan
Muzzle Velocity
2,657
fps
Muzzle Energy
2,664
ft-lbs
Ballistic Coefficient
0.353 G1
G1
Sectional Density
0.301
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,657fps | 2,664ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,405fps | 2,184ft-lbs | 0 | 0 | 1 | 0.119 |
| 200 yd | 2,168fps | 1,774ft-lbs | -4.5 | -2.2 | 4.3 | 0.25 |
| 300 yd | 1,944fps | 1,426ft-lbs | -16.5 | -5.2 | 10.1 | 0.396 |
| 400 yd | 1,735fps | 1,136ft-lbs | -37.7 | -9 | 19 | 0.56 |
| 500 yd | 1,544fps | 900ft-lbs | -70.5 | -13.5 | 31.4 | 0.743 |
| 600 yd | 1,374fps | 713ft-lbs | -117.9 | -18.8 | 47.8 | 0.949 |
| 700 yd | 1,231fps | 572ft-lbs | -183.8 | -25.1 | 68.6 | 1.18 |
| 800 yd | 1,119fps | 473ft-lbs | -272.7 | -32.5 | 93.8 | 1.436 |
| 900 yd | 1,037fps | 406ft-lbs | -389.3 | -41.3 | 123 | 1.715 |
| 1000 yd | 977fps | 360ft-lbs | -538.2 | -51.4 | 155.7 | 2.014 |
Bullet Information
ManufacturerNorma
Bullet170gr Vulkan
Diameter0.284" (7mm)
ConstructionSoft Point
BC (G1)0.353 G1
Sectional Density0.301
Load Information
