Muzzle Velocity
2,756
fps
Muzzle Energy
2,867
ft-lbs
Ballistic Coefficient
0.353 G1
G1
Sectional Density
0.301
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,756fps | 2,867ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,499fps | 2,357ft-lbs | 0 | 0 | 1 | 0.114 |
| 200 yd | 2,256fps | 1,921ft-lbs | -4.1 | -2 | 4 | 0.241 |
| 300 yd | 2,027fps | 1,551ft-lbs | -15 | -4.8 | 9.6 | 0.381 |
| 400 yd | 1,812fps | 1,240ft-lbs | -34.5 | -8.2 | 18 | 0.538 |
| 500 yd | 1,614fps | 983ft-lbs | -64.5 | -12.3 | 29.7 | 0.713 |
| 600 yd | 1,436fps | 778ft-lbs | -108 | -17.2 | 45.2 | 0.91 |
| 700 yd | 1,282fps | 620ft-lbs | -168.4 | -23 | 65.1 | 1.132 |
| 800 yd | 1,157fps | 506ft-lbs | -250 | -29.8 | 89.3 | 1.378 |
| 900 yd | 1,065fps | 428ft-lbs | -357.6 | -37.9 | 117.8 | 1.649 |
| 1000 yd | 998fps | 376ft-lbs | -495.7 | -47.3 | 150 | 1.941 |
Bullet Information
ManufacturerNorma
Bullet170gr Vulkan
Diameter0.284" (7mm)
ConstructionSoft Point
BC (G1)0.353 G1
Sectional Density0.301
Load Information
More 7×64mm Brenneke Loads
Hornady
Hornady International
7×64mm Brenneke · 150gr · ECX
MV: Not published
BC: 0.287 G1
Energy: —
Type: Hunting
Norma
Ecostrike
7×64mm Brenneke · 140gr · Ecostrike
MV: 2,986fps
BC: 0.443 G1
Energy: 2,771ft-lbs
Type: Hunting
Barnes
VOR-TX Euro
7×64mm Brenneke · 140gr · TTSX
MV: 2,950fps
BC: 0.412 G1
Energy: 2,705ft-lbs
Type: Hunting
Norma
Tipstrike
7×64mm Brenneke · 160gr · Tipstrike
MV: 2,919fps
BC: 0.510 G1
Energy: 3,027ft-lbs
Type: Hunting
Norma
Bondstrike
7×64mm Brenneke · 165gr · Bondstrike
MV: 2,854fps
BC: 0.632 G1
Energy: 2,984ft-lbs
Type: Hunting
Norma
Oryx
7×64mm Brenneke · 170gr · Oryx
MV: 2,756fps
BC: 0.324 G1
Energy: 2,867ft-lbs
Type: Hunting
Other Loads Using the Vulkan

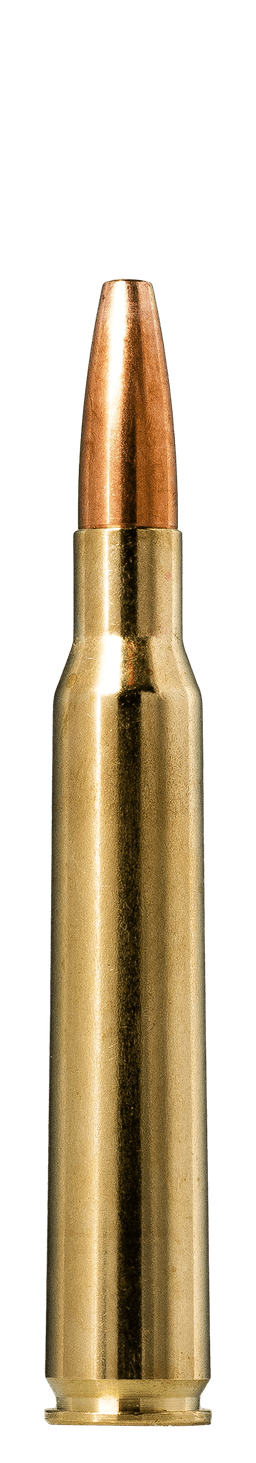

Norma
