Muzzle Velocity
3,199
fps
Muzzle Energy
2,954
ft-lbs
Ballistic Coefficient
0.359 G1
G1
Sectional Density
0.242
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,199fps | 2,954ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,920fps | 2,460ft-lbs | 0 | 0 | 0.8 | 0.098 |
| 200 yd | 2,658fps | 2,038ft-lbs | -2.6 | -1.2 | 3.2 | 0.206 |
| 300 yd | 2,410fps | 1,676ft-lbs | -10.1 | -3.2 | 7.6 | 0.324 |
| 400 yd | 2,176fps | 1,367ft-lbs | -23.7 | -5.6 | 14.1 | 0.455 |
| 500 yd | 1,955fps | 1,103ft-lbs | -44.6 | -8.5 | 23.2 | 0.601 |
| 600 yd | 1,749fps | 883ft-lbs | -74.6 | -11.9 | 35.3 | 0.763 |
| 700 yd | 1,560fps | 702ft-lbs | -116 | -15.8 | 50.8 | 0.945 |
| 800 yd | 1,391fps | 558ft-lbs | -171.8 | -20.5 | 70.1 | 1.149 |
| 900 yd | 1,247fps | 448ft-lbs | -245.7 | -26.1 | 93.8 | 1.377 |
| 1000 yd | 1,132fps | 370ft-lbs | -341.9 | -32.7 | 121.8 | 1.63 |
Bullet Information
ManufacturerNorma

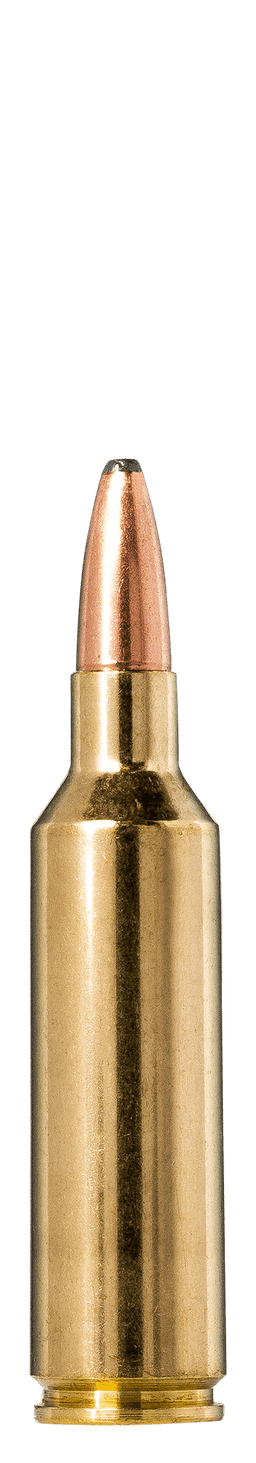

Bullet130gr Whitetail
Diameter0.277"
ConstructionSoft Point
BC (G1)0.359 G1
Sectional Density0.242
Load Information
Cartridge.270 Winchester Short Magnum
ManufacturerNorma
Product LineWhitetail
CategoryHunting
Test Barrel24"
SKU20169592
