Muzzle Velocity
2,710
fps
Muzzle Energy
2,283
ft-lbs
Ballistic Coefficient
0.580
G1
Sectional Density
0.287
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,710fps | 2,283ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,553fps | 2,026ft-lbs | 0 | 0 | 0.6 | 0.114 |
| 200 yd | 2,402fps | 1,793ft-lbs | -3.8 | -1.8 | 2.4 | 0.235 |
| 300 yd | 2,256fps | 1,582ft-lbs | -13.7 | -4.4 | 5.6 | 0.364 |
| 400 yd | 2,115fps | 1,390ft-lbs | -30.4 | -7.3 | 10.3 | 0.501 |
| 500 yd | 1,979fps | 1,217ft-lbs | -54.9 | -10.5 | 16.6 | 0.648 |
| 600 yd | 1,849fps | 1,062ft-lbs | -88.3 | -14.1 | 24.8 | 0.805 |
| 700 yd | 1,724fps | 924ft-lbs | -131.9 | -18 | 34.9 | 0.973 |
| 800 yd | 1,606fps | 802ft-lbs | -187.1 | -22.3 | 47.1 | 1.153 |
| 900 yd | 1,496fps | 695ft-lbs | -255.9 | -27.2 | 61.7 | 1.347 |
| 1000 yd | 1,393fps | 603ft-lbs | -340.3 | -32.5 | 78.8 | 1.555 |
Bullet Information

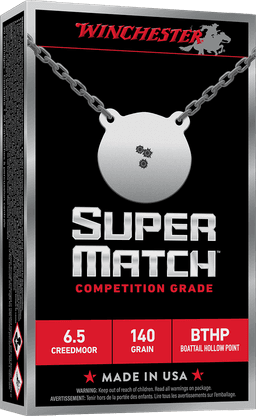

ManufacturerWinchester
Bullet140gr Match BTHP
Diameter0.264" (6.5mm)
ConstructionHollow Point
BC (G1)0.580 G1
Sectional Density0.287
Load Information
More 6.5 CM Loads
