Muzzle Velocity
3,030
fps
Muzzle Energy
2,854
ft-lbs
Ballistic Coefficient
0.580 G1
G1
Sectional Density
0.287
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,030fps | 2,854ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,862fps | 2,545ft-lbs | 0 | 0 | 0.5 | 0.102 |
| 200 yd | 2,700fps | 2,265ft-lbs | -2.7 | -1.3 | 2.1 | 0.21 |
| 300 yd | 2,543fps | 2,011ft-lbs | -10.3 | -3.3 | 4.8 | 0.324 |
| 400 yd | 2,393fps | 1,779ft-lbs | -23.2 | -5.5 | 8.8 | 0.446 |
| 500 yd | 2,247fps | 1,569ft-lbs | -42.2 | -8.1 | 14.1 | 0.575 |
| 600 yd | 2,106fps | 1,378ft-lbs | -68 | -10.8 | 21 | 0.713 |
| 700 yd | 1,970fps | 1,207ft-lbs | -101.8 | -13.9 | 29.5 | 0.861 |
| 800 yd | 1,840fps | 1,053ft-lbs | -144.5 | -17.2 | 39.8 | 1.018 |
| 900 yd | 1,716fps | 915ft-lbs | -197.4 | -20.9 | 52.1 | 1.187 |
| 1000 yd | 1,599fps | 794ft-lbs | -262.2 | -25 | 66.5 | 1.368 |

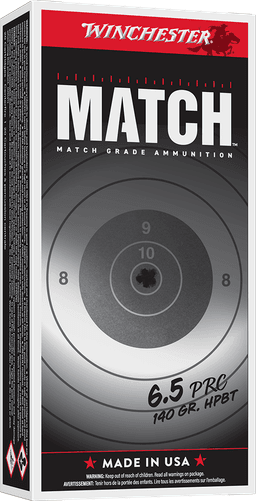

Bullet Information
ManufacturerWinchester
Bullet140gr Match
Diameter0.264" (6.5mm)
ConstructionHollow Point
BC (G1)0.580 G1
Sectional Density0.287
Load Information
