Muzzle Velocity
3,084
fps
Muzzle Energy
3,167
ft-lbs
Ballistic Coefficient
0.373 G1
G1
Sectional Density
0.279
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,084fps | 3,167ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,822fps | 2,652ft-lbs | 0 | 0 | 0.8 | 0.102 |
| 200 yd | 2,575fps | 2,207ft-lbs | -2.9 | -1.4 | 3.2 | 0.213 |
| 300 yd | 2,341fps | 1,824ft-lbs | -11 | -3.5 | 7.6 | 0.335 |
| 400 yd | 2,119fps | 1,495ft-lbs | -25.5 | -6.1 | 14.2 | 0.47 |
| 500 yd | 1,909fps | 1,214ft-lbs | -47.8 | -9.1 | 23.4 | 0.619 |
| 600 yd | 1,714fps | 978ft-lbs | -79.7 | -12.7 | 35.4 | 0.785 |
| 700 yd | 1,535fps | 784ft-lbs | -123.4 | -16.8 | 50.9 | 0.97 |
| 800 yd | 1,375fps | 629ft-lbs | -181.9 | -21.7 | 70.1 | 1.177 |
| 900 yd | 1,238fps | 510ft-lbs | -258.9 | -27.5 | 93.6 | 1.407 |
| 1000 yd | 1,130fps | 425ft-lbs | -358.7 | -34.2 | 121.2 | 1.661 |
Bullet Information

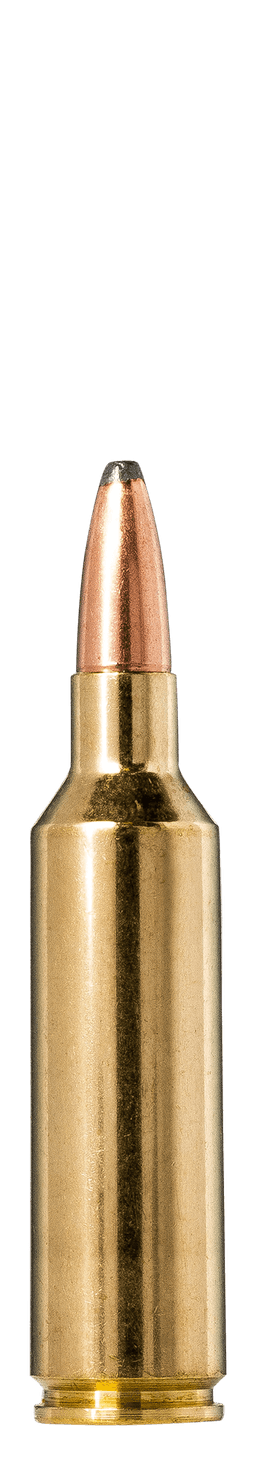

ManufacturerNorma
Bullet150gr Oryx
Diameter0.277"
ConstructionBonded
BC (G1)0.373 G1
Sectional Density0.279
Load Information
Cartridge.270 Winchester Short Magnum
ManufacturerNorma
Product LineOryx
CategoryHunting
Test Barrel24"
SKU20169322
