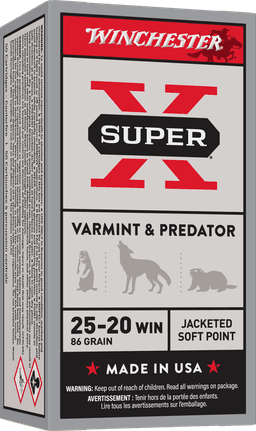

Winchester
Super-X
.25-20 Winchester · 86gr · Jacketed
Muzzle Velocity
1,460
fps
Muzzle Energy
407
ft-lbs
Ballistic Coefficient
0.191 G1
G1
Sectional Density
0.186
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 1,460fps | 407ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 1,191fps | 271ft-lbs | 0 | 0 | 4.1 | 0.229 |
| 200 yd | 1,025fps | 201ft-lbs | -23 | -11 | 16 | 0.502 |
| 300 yd | 926fps | 164ft-lbs | -79 | -25.2 | 34.2 | 0.811 |
| 400 yd | 852fps | 139ft-lbs | -175.6 | -41.9 | 57.6 | 1.149 |
| 500 yd | 792fps | 120ft-lbs | -320 | -61.1 | 85.8 | 1.515 |
| 600 yd | 739fps | 104ft-lbs | -520.1 | -82.8 | 118.8 | 1.908 |
| 700 yd | 691fps | 91ft-lbs | -784.1 | -107 | 156.7 | 2.329 |
| 800 yd | 647fps | 80ft-lbs | -1121.6 | -133.9 | 199.9 | 2.78 |
| 900 yd | 607fps | 70ft-lbs | -1543 | -163.7 | 248.5 | 3.261 |
| 1000 yd | 570fps | 62ft-lbs | -2060.3 | -196.7 | 303 | 3.777 |
Bullet Information
ManufacturerWinchester
Bullet86gr Jacketed
Diameter0.257"
ConstructionHollow Point
BC (G1)0.191 G1
Sectional Density0.186
