Muzzle Velocity
2,395
fps
Muzzle Energy
2,496
ft-lbs
Ballistic Coefficient
0.347 G1
G1
Sectional Density
0.268
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,395fps | 2,496ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,154fps | 2,019ft-lbs | 0 | 0 | 1.2 | 0.132 |
| 200 yd | 1,927fps | 1,616ft-lbs | -6 | -2.9 | 5.1 | 0.279 |
| 300 yd | 1,716fps | 1,282ft-lbs | -21.5 | -6.8 | 12.1 | 0.444 |
| 400 yd | 1,524fps | 1,011ft-lbs | -48.7 | -11.6 | 22.7 | 0.63 |
| 500 yd | 1,354fps | 798ft-lbs | -91.1 | -17.4 | 37.4 | 0.839 |
| 600 yd | 1,212fps | 640ft-lbs | -152.4 | -24.3 | 56.7 | 1.073 |
| 700 yd | 1,104fps | 530ft-lbs | -237.4 | -32.4 | 80.4 | 1.333 |
| 800 yd | 1,025fps | 457ft-lbs | -350.9 | -41.9 | 108.1 | 1.616 |
| 900 yd | 966fps | 406ft-lbs | -497.5 | -52.8 | 139.2 | 1.918 |
| 1000 yd | 918fps | 367ft-lbs | -681.4 | -65.1 | 173.3 | 2.237 |

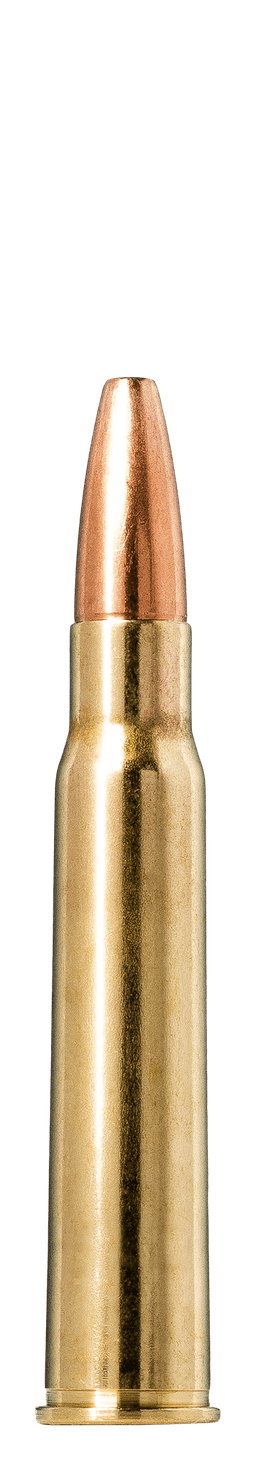

Bullet Information
ManufacturerNorma
Bullet196gr Vulkan
Diameter0.323"
ConstructionSoft Point
BC (G1)0.347 G1
Sectional Density0.268
Load Information
Cartridge7.92×57mm Mauser
ManufacturerNorma
Product LineVulkan
CategoryHunting
Test Barrel24"
SKU20180192
More 7.92×57mm Mauser Loads
Hornady
Hornady International
7.92×57mm Mauser · 180gr · ECX
MV: Not published
BC: 0.257 G1
Energy: —
Type: Hunting
Norma
Evostrike
7.92×57mm Mauser · 139gr · Evostrike
MV: 3,018fps
BC: 0.327 G1
Energy: 2,811ft-lbs
Type: Hunting
Norma
Jaktmatch
7.92×57mm Mauser · 123gr · Jaktmatch
MV: 2,821fps
BC: 0.191 G1
Energy: 2,173ft-lbs
Type: Hunting
Norma
Ecostrike
7.92×57mm Mauser · 160gr · Ecostrike
MV: 2,789fps
BC: 0.353 G1
Energy: 2,763ft-lbs
Type: Hunting
Norma
Ecostrike Silencer Series
7.92×57mm Mauser · 160gr · Ecostrike
MV: 2,707fps
BC: 0.353 G1
Energy: 2,603ft-lbs
Type: Hunting
Norma
Tipstrike
7.92×57mm Mauser · 180gr · Tipstrike
MV: 2,625fps
BC: 0.361 G1
Energy: 2,754ft-lbs
Type: Hunting
Other Loads Using the Vulkan
Norma
Vulkan
7.92×57mm Mauser · 196gr · Vulkan
MV: 2,526fps
BC: 0.347 G1
Energy: 2,776ft-lbs
Type: Hunting
Similar Loads in Other Cartridges
Nosler
Trophy Grade
.325 WSM · 200gr · AccuBond
MV: 2,900fps
BC: 0.450 G1
Energy: 3,734ft-lbs
Type: Hunting
