Norma
Vulkan

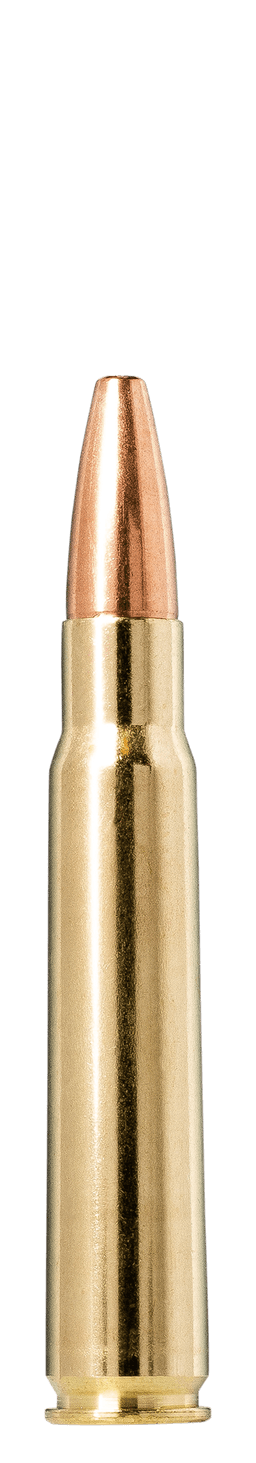

7.92×57mm Mauser · 196gr · Vulkan
Muzzle Velocity
2,526
fps
Muzzle Energy
2,776
ft-lbs
Ballistic Coefficient
0.347 G1
G1
Sectional Density
0.268
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,526fps | 2,776ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,278fps | 2,257ft-lbs | 0 | 0 | 1.1 | 0.125 |
| 200 yd | 2,043fps | 1,817ft-lbs | -5.2 | -2.5 | 4.7 | 0.264 |
| 300 yd | 1,824fps | 1,448ft-lbs | -18.8 | -6 | 11.1 | 0.42 |
| 400 yd | 1,621fps | 1,144ft-lbs | -42.9 | -10.2 | 20.9 | 0.594 |
| 500 yd | 1,439fps | 902ft-lbs | -80.3 | -15.3 | 34.6 | 0.791 |
| 600 yd | 1,282fps | 716ft-lbs | -134.5 | -21.4 | 52.6 | 1.012 |
| 700 yd | 1,156fps | 582ft-lbs | -209.9 | -28.6 | 75.2 | 1.259 |
| 800 yd | 1,063fps | 492ft-lbs | -311.3 | -37.2 | 102 | 1.53 |
| 900 yd | 995fps | 431ft-lbs | -443.5 | -47.1 | 132.6 | 1.822 |
| 1000 yd | 942fps | 386ft-lbs | -610.8 | -58.3 | 166.3 | 2.133 |
Bullet Information
ManufacturerNorma
Bullet196gr Vulkan
Diameter0.323"
ConstructionSoft Point
BC (G1)0.347 G1
Sectional Density0.268
Load Information
Cartridge7.92×57mm Mauser
ManufacturerNorma
Product LineVulkan
CategoryHunting
Test Barrel24"
SKU20180202
