Muzzle Velocity
2,789
fps
Muzzle Energy
1,813
ft-lbs
Ballistic Coefficient
0.258
G7
Sectional Density
0.254
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,789fps | 1,813ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,610fps | 1,588ft-lbs | 0 | 0 | 0.6 | 0.111 |
| 200 yd | 2,437fps | 1,384ft-lbs | -3.6 | -1.7 | 2.6 | 0.23 |
| 300 yd | 2,270fps | 1,202ft-lbs | -13.1 | -4.2 | 6.2 | 0.358 |
| 400 yd | 2,111fps | 1,039ft-lbs | -29.3 | -7 | 11.4 | 0.495 |
| 500 yd | 1,958fps | 894ft-lbs | -53.4 | -10.2 | 18.4 | 0.642 |
| 600 yd | 1,811fps | 765ft-lbs | -86.5 | -13.8 | 27.5 | 0.802 |
| 700 yd | 1,669fps | 650ft-lbs | -130.2 | -17.8 | 38.9 | 0.974 |
| 800 yd | 1,532fps | 547ft-lbs | -186.5 | -22.3 | 53 | 1.162 |
| 900 yd | 1,401fps | 457ft-lbs | -257.6 | -27.3 | 70.1 | 1.367 |
| 1000 yd | 1,275fps | 379ft-lbs | -346.5 | -33.1 | 90.7 | 1.591 |

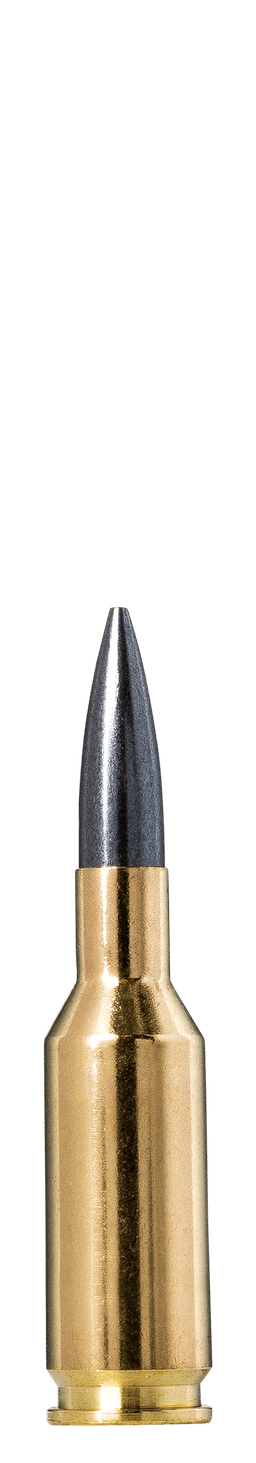

Bullet Information
ManufacturerNorma
Bullet105gr Diamond Line
Diameter0.243" (6mm)
ConstructionHollow Point
BC (G7)0.258 G7
BC (G1)0.517 G1
Sectional Density0.254
Load Information
Cartridge6mm BR Remington
ManufacturerNorma
Product LineDiamond Line
CategoryMatch
Test Barrel26"
SKU10160162
