Muzzle Velocity
3,018
fps
Muzzle Energy
2,123
ft-lbs
Ballistic Coefficient
0.517 G1
G1
Sectional Density
0.254
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 3,018fps | 2,123ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,830fps | 1,867ft-lbs | 0 | 0 | 0.6 | 0.103 |
| 200 yd | 2,650fps | 1,637ft-lbs | -2.8 | -1.4 | 2.4 | 0.212 |
| 300 yd | 2,477fps | 1,430ft-lbs | -10.6 | -3.4 | 5.5 | 0.329 |
| 400 yd | 2,311fps | 1,245ft-lbs | -24.1 | -5.8 | 10 | 0.455 |
| 500 yd | 2,151fps | 1,078ft-lbs | -44.1 | -8.4 | 16.2 | 0.589 |
| 600 yd | 1,997fps | 930ft-lbs | -71.6 | -11.4 | 24.2 | 0.734 |
| 700 yd | 1,850fps | 798ft-lbs | -107.9 | -14.7 | 34.2 | 0.89 |
| 800 yd | 1,711fps | 682ft-lbs | -154.4 | -18.4 | 46.4 | 1.059 |
| 900 yd | 1,580fps | 582ft-lbs | -212.7 | -22.6 | 61 | 1.241 |
| 1000 yd | 1,458fps | 496ft-lbs | -285 | -27.2 | 78.3 | 1.439 |
Bullet Information

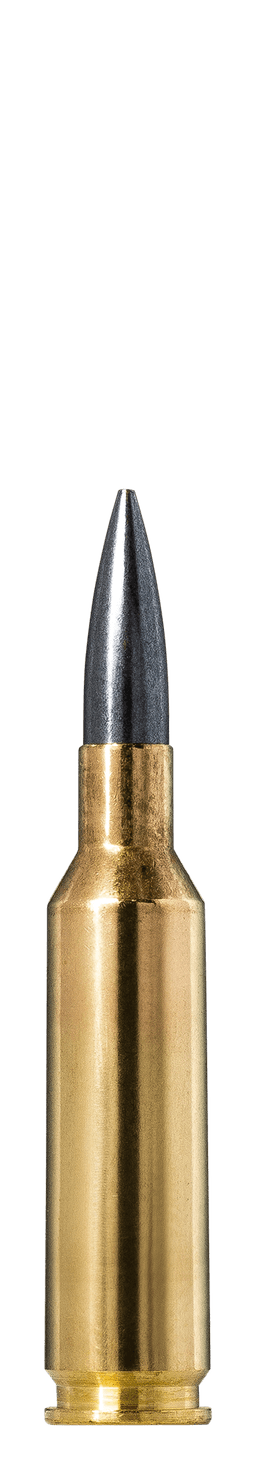

ManufacturerNorma
Bullet105gr Diamond Line
Diameter0.243" (6mm)
ConstructionHollow Point
BC (G1)0.517 G1
Sectional Density0.254
