Norma
Oryx

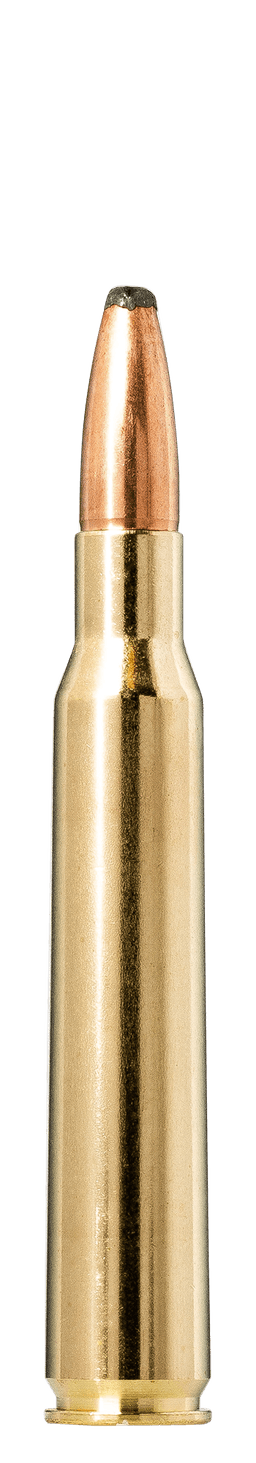

7×64mm Brenneke · 170gr · Oryx
Muzzle Velocity
2,756
fps
Muzzle Energy
2,867
ft-lbs
Ballistic Coefficient
0.324 G1
G1
Sectional Density
0.301
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,756fps | 2,867ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,477fps | 2,315ft-lbs | 0 | 0 | 1.1 | 0.115 |
| 200 yd | 2,214fps | 1,850ft-lbs | -4.2 | -2 | 4.4 | 0.243 |
| 300 yd | 1,968fps | 1,461ft-lbs | -15.5 | -4.9 | 10.6 | 0.387 |
| 400 yd | 1,739fps | 1,142ft-lbs | -35.9 | -8.6 | 20 | 0.549 |
| 500 yd | 1,532fps | 885ft-lbs | -67.8 | -12.9 | 33.2 | 0.733 |
| 600 yd | 1,350fps | 688ft-lbs | -114.5 | -18.2 | 50.8 | 0.942 |
| 700 yd | 1,200fps | 544ft-lbs | -180.5 | -24.6 | 73.2 | 1.178 |
| 800 yd | 1,088fps | 447ft-lbs | -270.6 | -32.3 | 100.4 | 1.441 |
| 900 yd | 1,009fps | 385ft-lbs | -390 | -41.4 | 131.7 | 1.728 |
| 1000 yd | 950fps | 341ft-lbs | -543.5 | -51.9 | 166.6 | 2.035 |
Bullet Information
ManufacturerNorma
Bullet170gr Oryx
Diameter0.284" (7mm)
ConstructionBonded
BC (G1)0.324 G1
Sectional Density0.301
Load Information
