Muzzle Velocity
2,150
fps
Muzzle Energy
5,849
ft-lbs
Ballistic Coefficient
0.368
G1
Sectional Density
0.313
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,150fps | 5,849ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 1,936fps | 4,743ft-lbs | 0 | 0 | 1.3 | 0.147 |
| 200 yd | 1,736fps | 3,814ft-lbs | -7.8 | -3.7 | 5.6 | 0.311 |
| 300 yd | 1,552fps | 3,049ft-lbs | -27.2 | -8.7 | 13.2 | 0.494 |
| 400 yd | 1,388fps | 2,438ft-lbs | -61.1 | -14.6 | 24.6 | 0.698 |
| 500 yd | 1,247fps | 1,969ft-lbs | -113.1 | -21.6 | 40.2 | 0.926 |
| 600 yd | 1,135fps | 1,631ft-lbs | -187.4 | -29.8 | 60.1 | 1.179 |
| 700 yd | 1,052fps | 1,401ft-lbs | -288.7 | -39.4 | 84 | 1.454 |
| 800 yd | 990fps | 1,241ft-lbs | -421.4 | -50.3 | 111.3 | 1.748 |
| 900 yd | 941fps | 1,120ft-lbs | -589.5 | -62.6 | 141.5 | 2.06 |
| 1000 yd | 899fps | 1,023ft-lbs | -797 | -76.1 | 174.5 | 2.387 |
Bullet Information
ManufacturerNorma
Bullet570gr African PH
Diameter0.51" (12.7mm)
ConstructionBonded
BC (G1)0.368 G1
Sectional Density0.313
Load Information
More .500 Nitro Loads
Swift
A-Frame Dangerous Game Heavy Rifle
.500 Nitro · 570gr · A-Frame
MV: Not published
BC: 0.306 G1
Energy: —
Type: Hunting
Swift
Break-Away Solids Dangerous Game
.500 Nitro · 570gr · Break-Away Solids
MV: 2,142fps
Energy: 5,806ft-lbs
Type: Hunting
Hornady
Dangerous Game Series
.500 Nitro · 570gr · DGS
MV: 2,120fps
BC: 0.295 G1
Energy: 5,687ft-lbs
Type: Hunting
Hornady
Dangerous Game Series
.500 Nitro · 570gr · DGX Bonded
MV: 2,120fps
BC: 0.295 G1
Energy: 5,687ft-lbs
Type: Hunting
Federal Premium
Safari Woodleigh Hydro Solid
.500 Nitro · 570gr · Hydro Solid
MV: 2,100fps
BC: 0.260 G1
Energy: 5,581ft-lbs
Type: Hunting
Barnes
VOR-TX Safari
.500 Nitro · 570gr · Banded Solid
MV: 2,100fps
BC: 0.243 G1
Energy: 5,581ft-lbs
Type: Hunting
Other Loads Using the African PH
Norma

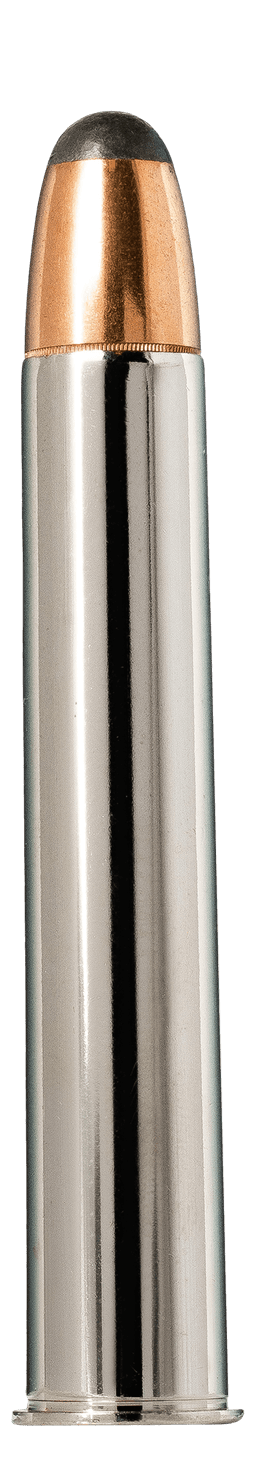

African Ph
.500 Jeffery · 570gr · African PH
MV: 2,198fps
BC: 0.368 G1
Energy: 6,114ft-lbs
Type: Hunting
Similar Loads in Other Cartridges
Swift
A-Frame Dangerous Game Heavy Rifle
.500 Jeffery · 570gr · A-Frame
MV: 2,216fps
BC: 0.306 G1
Energy: 6,214ft-lbs
Type: Hunting
Norma
African Ph
.500 Jeffery · 570gr · African PH
MV: 2,198fps
BC: 0.368 G1
Energy: 6,114ft-lbs
Type: Hunting
