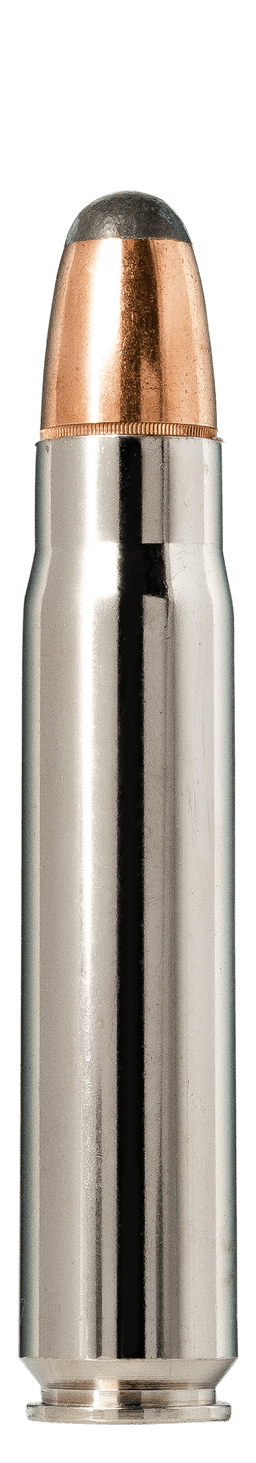

Norma
African Ph
.500 Jeffery · 570gr · African PH
Muzzle Velocity
2,198
fps
Muzzle Energy
6,114
ft-lbs
Ballistic Coefficient
0.368 G1
G1
Sectional Density
0.313
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,198fps | 6,114ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 1,981fps | 4,967ft-lbs | 0 | 0 | 1.3 | 0.144 |
| 200 yd | 1,778fps | 4,001ft-lbs | -7.4 | -3.5 | 5.4 | 0.304 |
| 300 yd | 1,591fps | 3,201ft-lbs | -25.8 | -8.2 | 12.8 | 0.482 |
| 400 yd | 1,422fps | 2,558ft-lbs | -58.1 | -13.9 | 23.9 | 0.682 |
| 500 yd | 1,276fps | 2,059ft-lbs | -107.5 | -20.5 | 39.1 | 0.905 |
| 600 yd | 1,157fps | 1,694ft-lbs | -178.4 | -28.4 | 58.6 | 1.152 |
| 700 yd | 1,068fps | 1,444ft-lbs | -275.3 | -37.6 | 82.2 | 1.423 |
| 800 yd | 1,002fps | 1,272ft-lbs | -402.6 | -48.1 | 109.3 | 1.713 |
| 900 yd | 951fps | 1,144ft-lbs | -564.5 | -59.9 | 139.5 | 2.021 |
| 1000 yd | 908fps | 1,043ft-lbs | -764.9 | -73 | 172.4 | 2.345 |
Bullet Information
ManufacturerNorma
Bullet570gr African PH
Diameter0.51" (12.7mm)
ConstructionBonded
BC (G1)0.368 G1
Sectional Density0.313
Load Information
More .500 Jeffery Loads
Norma
2xAfrican Ph Solids
.500 Jeffery · 540gr · African PH Solids
MV: 2,400fps
BC: 0.239 G1
Energy: 6,905ft-lbs
Type: Hunting
Similar Loads in Other Cartridges
Hornady
2xDangerous Game
.500 Nitro · 570gr · DGX Bonded
MV: 2,120fps
BC: 0.295 G1
Energy: 5,687ft-lbs
Type: Hunting
Hornady
Dangerous Game
.500 Nitro · 570gr · DGX Bonded
MV: 2,120fps
BC: 0.295 G1
Energy: 5,687ft-lbs
Type: Hunting
Barnes
VOR-TX
.500 Nitro · 570gr · Tipped Triple-Shock X
MV: 2,100fps
BC: 0.369 G1
Energy: 5,581ft-lbs
Type: Hunting
Federal Premium
Safari Swift A-Frame
.500 Nitro · 570gr · A-Frame
MV: 2,100fps
BC: 0.306 G1
Energy: 5,581ft-lbs
Type: Hunting
Barnes
VOR-TX
.500 Nitro · 570gr · Banded Solid
MV: 2,100fps
BC: 0.243 G1
Energy: 5,581ft-lbs
Type: Hunting
Federal Premium
Safari Woodleigh Hydro Solid
.500 Nitro · 570gr · Hydro Solid
MV: 2,100fps
BC: 0.260 G1
Energy: 5,581ft-lbs
Type: Hunting
