Muzzle Velocity
2,725
fps
Muzzle Energy
2,308
ft-lbs
Ballistic Coefficient
0.617 G1
G1
Sectional Density
0.287
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,725fps | 2,308ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,577fps | 2,064ft-lbs | 0 | 0 | 0.5 | 0.113 |
| 200 yd | 2,434fps | 1,841ft-lbs | -3.7 | -1.8 | 2.3 | 0.233 |
| 300 yd | 2,296fps | 1,638ft-lbs | -13.4 | -4.2 | 5.2 | 0.36 |
| 400 yd | 2,161fps | 1,452ft-lbs | -29.6 | -7.1 | 9.5 | 0.495 |
| 500 yd | 2,032fps | 1,283ft-lbs | -53.2 | -10.2 | 15.4 | 0.638 |
| 600 yd | 1,907fps | 1,130ft-lbs | -85.3 | -13.6 | 22.8 | 0.79 |
| 700 yd | 1,787fps | 993ft-lbs | -127 | -17.3 | 32 | 0.953 |
| 800 yd | 1,673fps | 870ft-lbs | -179.6 | -21.4 | 43.2 | 1.126 |
| 900 yd | 1,565fps | 761ft-lbs | -244.6 | -25.9 | 56.5 | 1.312 |
| 1000 yd | 1,463fps | 666ft-lbs | -323.8 | -30.9 | 72 | 1.51 |

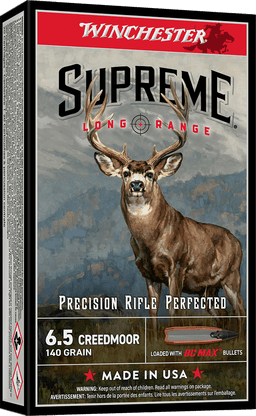

Bullet Information
ManufacturerWinchester
Bullet140gr BC MAX
Diameter0.264" (6.5mm)
ConstructionOther
BC (G1)0.617 G1
Sectional Density0.287
