Muzzle Velocity
2,755
fps
Muzzle Energy
3,876
ft-lbs
Ballistic Coefficient
0.370 G1
G1
Sectional Density
0.288
Bullet Drop (inches)
Ballistic Trajectory
100yd zero, sea level, 59°F, 10 mph crosswind
| Range | Velocity | Energy | Drop (in) | Drop (MOA) | Wind (in) | TOF |
|---|---|---|---|---|---|---|
| 0 yd | 2,755fps | 3,876ft-lbs | -1.5 | 0 | 0 | 0 |
| 100 yd | 2,509fps | 3,216ft-lbs | 0 | 0 | 0.9 | 0.114 |
| 200 yd | 2,277fps | 2,647ft-lbs | -4 | -1.9 | 3.8 | 0.24 |
| 300 yd | 2,057fps | 2,160ft-lbs | -14.8 | -4.7 | 9.1 | 0.378 |
| 400 yd | 1,850fps | 1,747ft-lbs | -33.8 | -8.1 | 17 | 0.532 |
| 500 yd | 1,657fps | 1,403ft-lbs | -63 | -12 | 28 | 0.703 |
| 600 yd | 1,482fps | 1,122ft-lbs | -105 | -16.7 | 42.5 | 0.895 |
| 700 yd | 1,328fps | 900ft-lbs | -162.8 | -22.2 | 61 | 1.109 |
| 800 yd | 1,199fps | 734ft-lbs | -240.3 | -28.7 | 83.8 | 1.347 |
| 900 yd | 1,099fps | 617ft-lbs | -342.1 | -36.3 | 110.7 | 1.609 |
| 1000 yd | 1,026fps | 538ft-lbs | -472.6 | -45.1 | 141.4 | 1.892 |
Bullet Information

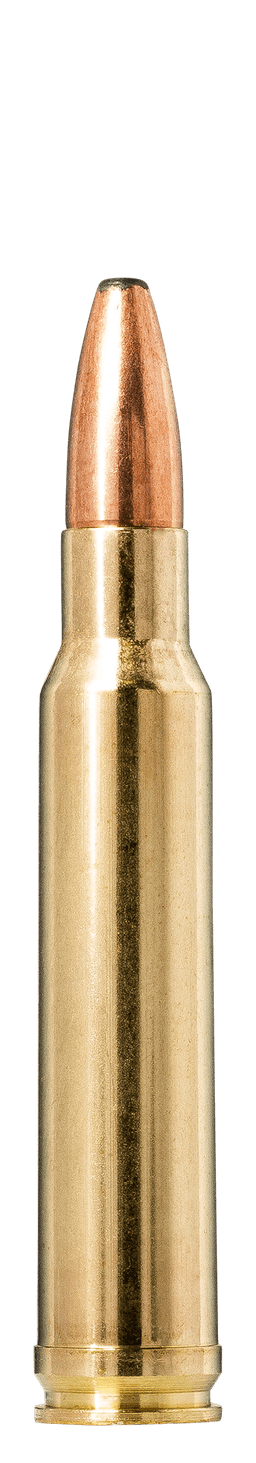

ManufacturerNorma
Bullet230gr Oryx
Diameter0.338" (8.6mm)
ConstructionBonded
BC (G1)0.370 G1
Sectional Density0.288
Load Information
Cartridge.338 Winchester Magnum
ManufacturerNorma
Product LineOryx
CategoryHunting
Test Barrel26"
SKU20185112
